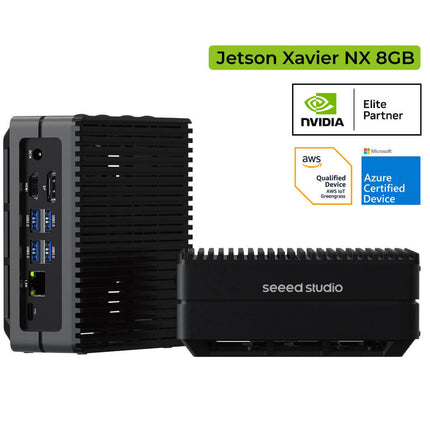

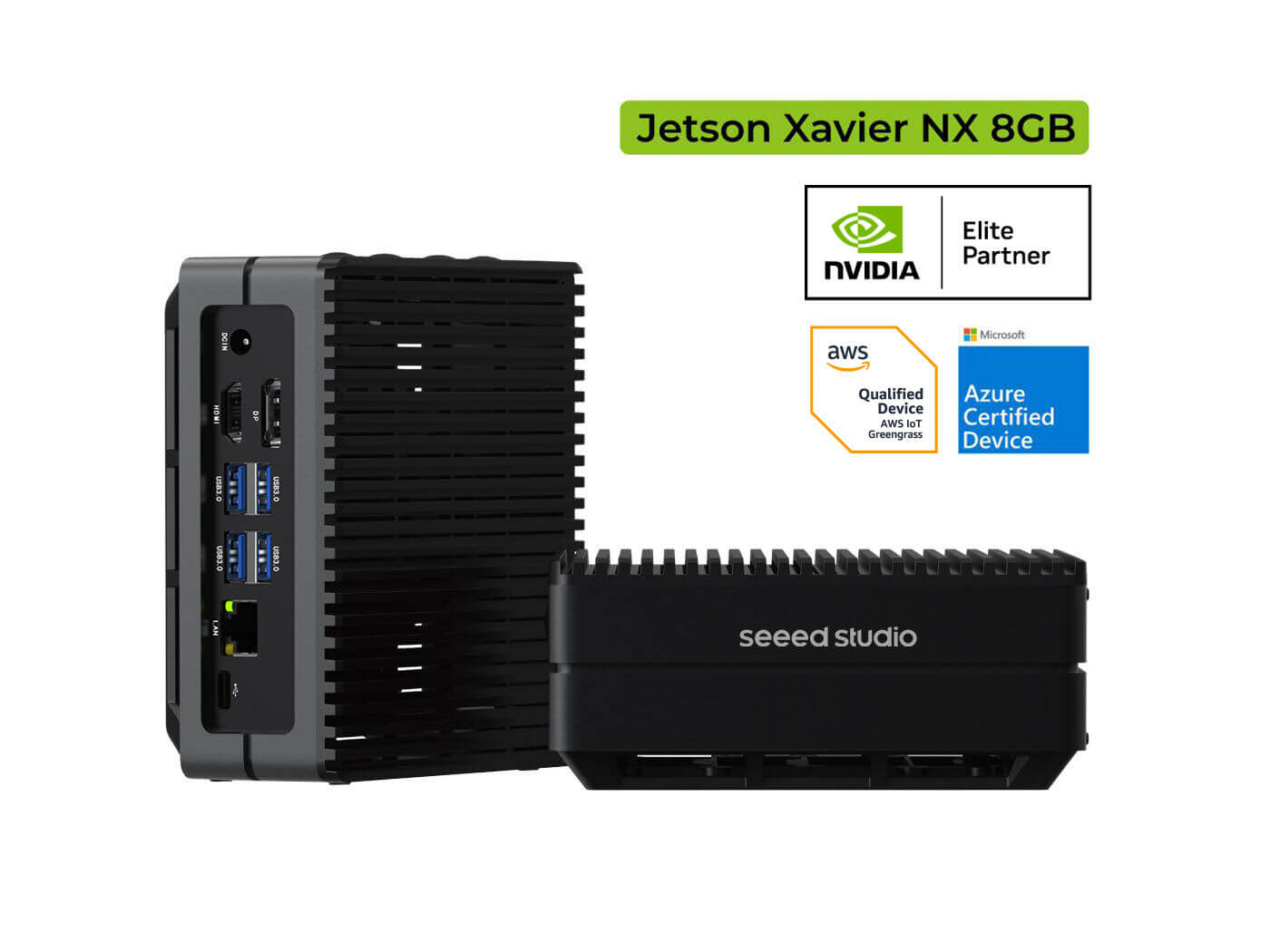

Edge AI Computer with NVIDIA® Jetson Xavier™ NX 8GB

คำอธิบาย

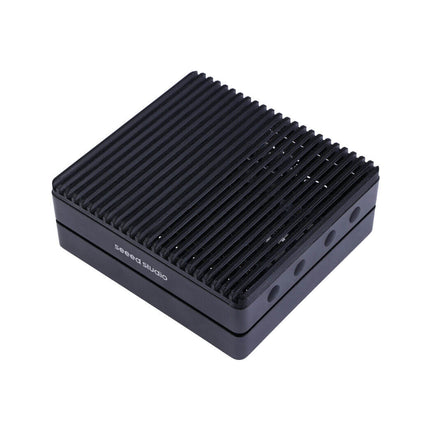

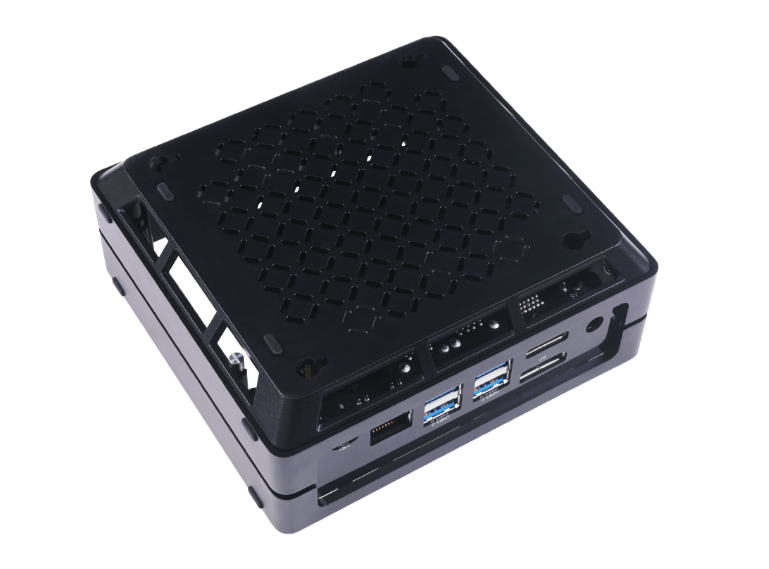

reComputer J202 Series: คอมพิวเตอร์ AI Edge พร้อม Jetson Xavier NX

reComputer J202 Series คือคอมพิวเตอร์ AI Edge ขนาดกะทัดรัดและทรงพลัง ที่ออกแบบมาเพื่อการพัฒนาและปรับใช้แอปพลิเคชัน AI ขั้นสูง มาพร้อมกับ NVIDIA Jetson Xavier NX module, เคสอลูมิเนียมที่ทนทาน, ฮีทซิงค์พร้อมพัดลมระบายความร้อน, และพอร์ตเชื่อมต่อที่ครบครัน ทำให้เป็นโซลูชันที่พร้อมใช้งานทันทีสำหรับนักพัฒนา

ข้อแนะนำในการใช้งาน: เพื่อประสิทธิภาพสูงสุด แนะนำให้ใช้ SSD ขนาด 128GB / 256GB / 512GB / 1TB จาก Seeed เนื่องจาก SSD บางรุ่นในท้องตลาดอาจไม่เข้ากันกับ JetPack บางเวอร์ชัน ซึ่งอาจทำให้เกิดปัญหาในการใช้งานได้ (ปัญหานี้พบได้ในบอร์ด Dev Kit ของ NVIDIA เช่นกัน)

เลือกรุ่นที่ใช่สำหรับคุณ (J2022 vs J2021)

คุณสมบัติ reComputer J2022 reComputer J2021
หน่วยความจำ (Memory) 16 GB 128-bit LPDDR4x 8 GB 128-bit LPDDR4x
พื้นที่จัดเก็บ (Storage) 16 GB eMMC 5.1 16 GB eMMC 5.1

ข้อมูลจำเพาะทางเทคนิค (Technical Specifications)

NVIDIA Jetson Xavier NX System on Module
GPU 384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU (6MB L2 + 4MB L3)
Video Encoder 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
Video Decoder 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
Carrier Board
Ethernet 1x RJ45 Gigabit Ethernet (10/100/1000)
M.2 KEY E 1x M.2 Key E (สำหรับโมดูล Wi-Fi/Bluetooth)
USB 4x USB 3.1 Type-A, 1x USB Type-C (Device mode)
Camera 2x CSI Camera (15-pin MIPI CSI-2)
Display 1x HDMI Type A, 1x DisplayPort (DP)
Fan 1x FAN connector (5V PWM)
CAN 1x CAN Bus
Expansion 1x 40-Pin Expansion header
RTC RTC 2-pin, RTC socket (สำหรับแบตเตอรี่)
Power 9-19V DC Input (ผ่าน Barrel Jack)
ข้อมูลทางกายภาพและอื่นๆ
ขนาด (รวมเคส) 130 x 120 x 58.5 มม.
การติดตั้ง ตั้งโต๊ะ, ยึดติดผนัง (Wall-mounting)
อุณหภูมิใช้งาน -10℃ ~ 60℃
การรับประกัน 1 ปี

การประยุกต์ใช้งาน (Applications)

  • หุ่นยนต์เคลื่อนที่อัตโนมัติ (Autonomous Mobile Robot - AMR)
  • ระบบวิเคราะห์วิดีโอด้วย AI (AI Video Analytics)
  • Machine Vision ในโรงงานอุตสาหกรรม

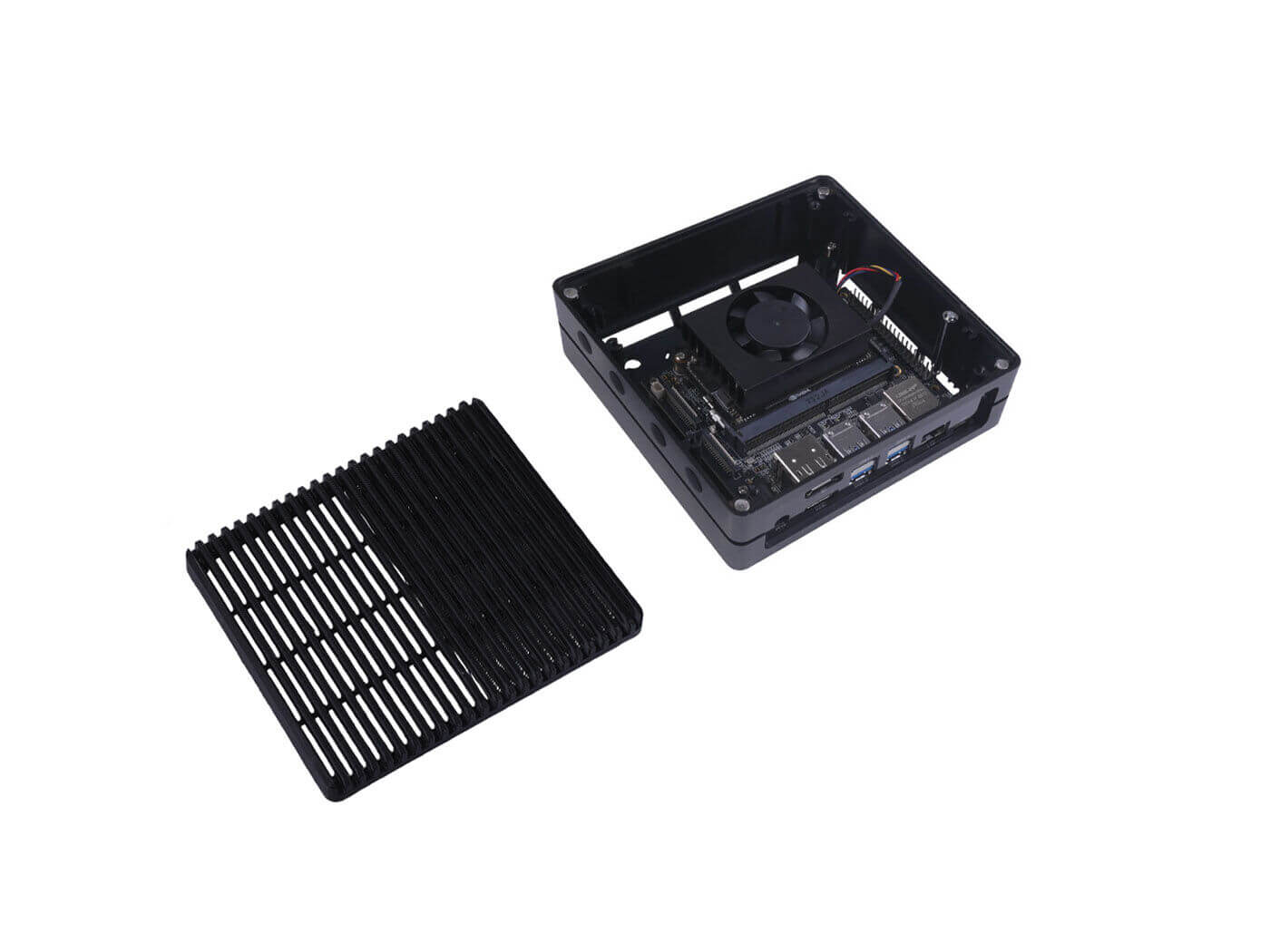

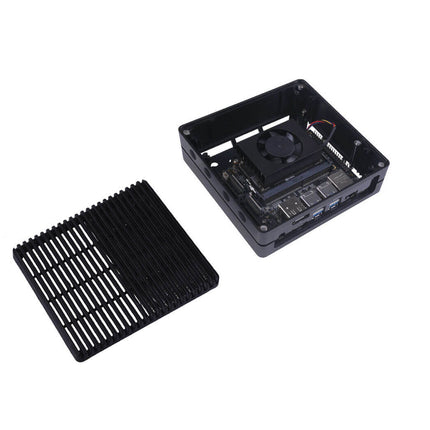

อุปกรณ์ภายในชุด (Part List)

  • ฝาครอบอะคริลิค (Acrylic Cover) x1
  • โครงอลูมิเนียม (Aluminium Frame) x1
  • โมดูล Jetson Xavier NX (ตามรุ่นที่เลือก) x1
  • ฮีทซิงค์อลูมิเนียมพร้อมพัดลม x1
  • บอร์ด Carrier Board x1

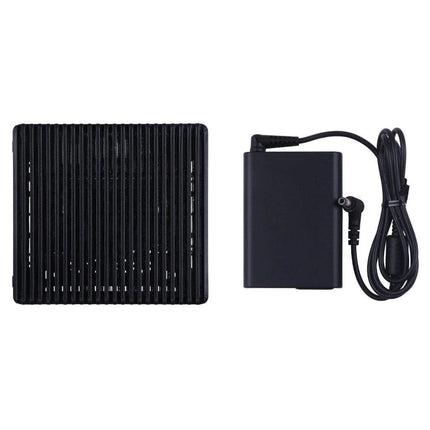

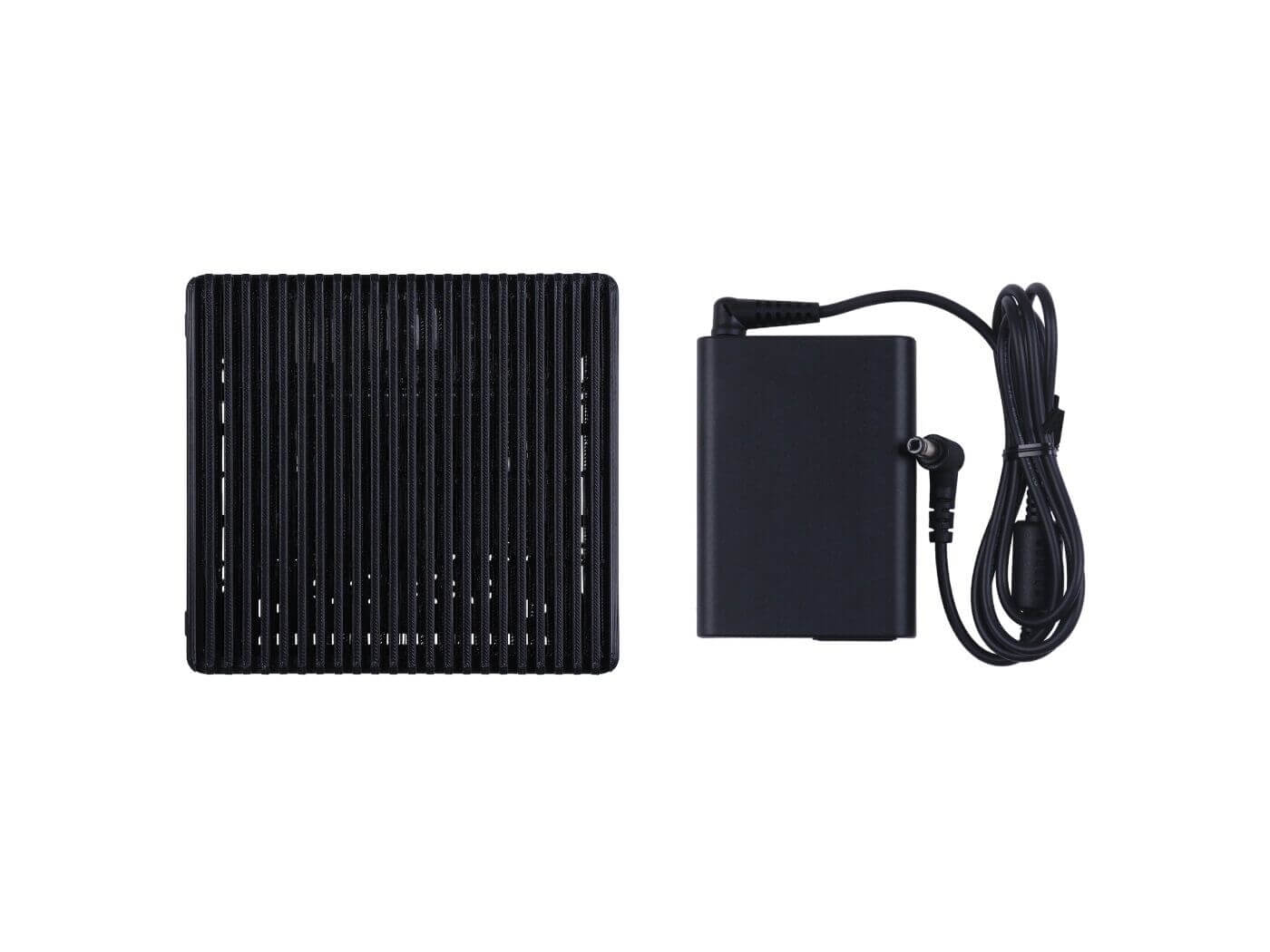

  • อะแดปเตอร์ 12V/5A (หัว DC Jack 5.5/2.5mm) x1 (หมายเหตุ: ไม่รวมสายไฟ AC สำหรับอะแดปเตอร์)

●Hand-size edge AI device: built with Jetson Xavier NX 8GB Production Module, delivering 384 NVIDIA CUDA® cores delivers up to 21 TOPs AI performance with a small form factor of 130mm x120mm x 50mm. ●NVIDIA Jetson Xavier NX Dev Kit alternative: the carrier board brings rich IOs including a Gigabit Ethernet port, 4 USB 3.1 ports, an HDMI port, and a DP port ●Pre-installed NVIDIA JetPack: support the entire https://developer.nvidia.com/embedded/develop/software and various https://wiki.seeedstudio.com/Jetson-AI-developer-tools/ for building fast and robust AI application provided by Seeed Edge AI partners, helps develop innovative AI solution for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc ●Expandable with the onboard interfaces and reComputer case, able to mount on the wall with mounting holes on the back.


Desktop, Wall Mount, Expandable, or Fit in Anywhere

Edge AI Computer with NVIDIA® Jetson Xavier™ NX 8GB

รูปแบบสินค้า

30,000.00 ฿ ไม่รวมภาษีมูลค่าเพิ่ม

      คำอธิบาย

      reComputer J202 Series: คอมพิวเตอร์ AI Edge พร้อม Jetson Xavier NX

      reComputer J202 Series คือคอมพิวเตอร์ AI Edge ขนาดกะทัดรัดและทรงพลัง ที่ออกแบบมาเพื่อการพัฒนาและปรับใช้แอปพลิเคชัน AI ขั้นสูง มาพร้อมกับ NVIDIA Jetson Xavier NX module, เคสอลูมิเนียมที่ทนทาน, ฮีทซิงค์พร้อมพัดลมระบายความร้อน, และพอร์ตเชื่อมต่อที่ครบครัน ทำให้เป็นโซลูชันที่พร้อมใช้งานทันทีสำหรับนักพัฒนา

      ข้อแนะนำในการใช้งาน: เพื่อประสิทธิภาพสูงสุด แนะนำให้ใช้ SSD ขนาด 128GB / 256GB / 512GB / 1TB จาก Seeed เนื่องจาก SSD บางรุ่นในท้องตลาดอาจไม่เข้ากันกับ JetPack บางเวอร์ชัน ซึ่งอาจทำให้เกิดปัญหาในการใช้งานได้ (ปัญหานี้พบได้ในบอร์ด Dev Kit ของ NVIDIA เช่นกัน)

      เลือกรุ่นที่ใช่สำหรับคุณ (J2022 vs J2021)

      คุณสมบัติ reComputer J2022 reComputer J2021
      หน่วยความจำ (Memory) 16 GB 128-bit LPDDR4x 8 GB 128-bit LPDDR4x
      พื้นที่จัดเก็บ (Storage) 16 GB eMMC 5.1 16 GB eMMC 5.1

      ข้อมูลจำเพาะทางเทคนิค (Technical Specifications)

      NVIDIA Jetson Xavier NX System on Module
      GPU 384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores
      CPU 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU (6MB L2 + 4MB L3)
      Video Encoder 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
      Video Decoder 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
      Carrier Board
      Ethernet 1x RJ45 Gigabit Ethernet (10/100/1000)
      M.2 KEY E 1x M.2 Key E (สำหรับโมดูล Wi-Fi/Bluetooth)
      USB 4x USB 3.1 Type-A, 1x USB Type-C (Device mode)
      Camera 2x CSI Camera (15-pin MIPI CSI-2)
      Display 1x HDMI Type A, 1x DisplayPort (DP)
      Fan 1x FAN connector (5V PWM)
      CAN 1x CAN Bus
      Expansion 1x 40-Pin Expansion header
      RTC RTC 2-pin, RTC socket (สำหรับแบตเตอรี่)
      Power 9-19V DC Input (ผ่าน Barrel Jack)
      ข้อมูลทางกายภาพและอื่นๆ
      ขนาด (รวมเคส) 130 x 120 x 58.5 มม.
      การติดตั้ง ตั้งโต๊ะ, ยึดติดผนัง (Wall-mounting)
      อุณหภูมิใช้งาน -10℃ ~ 60℃
      การรับประกัน 1 ปี

      การประยุกต์ใช้งาน (Applications)

      • หุ่นยนต์เคลื่อนที่อัตโนมัติ (Autonomous Mobile Robot - AMR)
      • ระบบวิเคราะห์วิดีโอด้วย AI (AI Video Analytics)
      • Machine Vision ในโรงงานอุตสาหกรรม

      อุปกรณ์ภายในชุด (Part List)

      • ฝาครอบอะคริลิค (Acrylic Cover) x1
      • โครงอลูมิเนียม (Aluminium Frame) x1
      • โมดูล Jetson Xavier NX (ตามรุ่นที่เลือก) x1
      • ฮีทซิงค์อลูมิเนียมพร้อมพัดลม x1
      • บอร์ด Carrier Board x1
      • อะแดปเตอร์ 12V/5A (หัว DC Jack 5.5/2.5mm) x1 (หมายเหตุ: ไม่รวมสายไฟ AC สำหรับอะแดปเตอร์)

      ●Hand-size edge AI device: built with Jetson Xavier NX 8GB Production Module, delivering 384 NVIDIA CUDA® cores delivers up to 21 TOPs AI performance with a small form factor of 130mm x120mm x 50mm. ●NVIDIA Jetson Xavier NX Dev Kit alternative: the carrier board brings rich IOs including a Gigabit Ethernet port, 4 USB 3.1 ports, an HDMI port, and a DP port ●Pre-installed NVIDIA JetPack: support the entire https://developer.nvidia.com/embedded/develop/software and various https://wiki.seeedstudio.com/Jetson-AI-developer-tools/ for building fast and robust AI application provided by Seeed Edge AI partners, helps develop innovative AI solution for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc ●Expandable with the onboard interfaces and reComputer case, able to mount on the wall with mounting holes on the back.


      Desktop, Wall Mount, Expandable, or Fit in Anywhere
