OTD144

คำอธิบาย

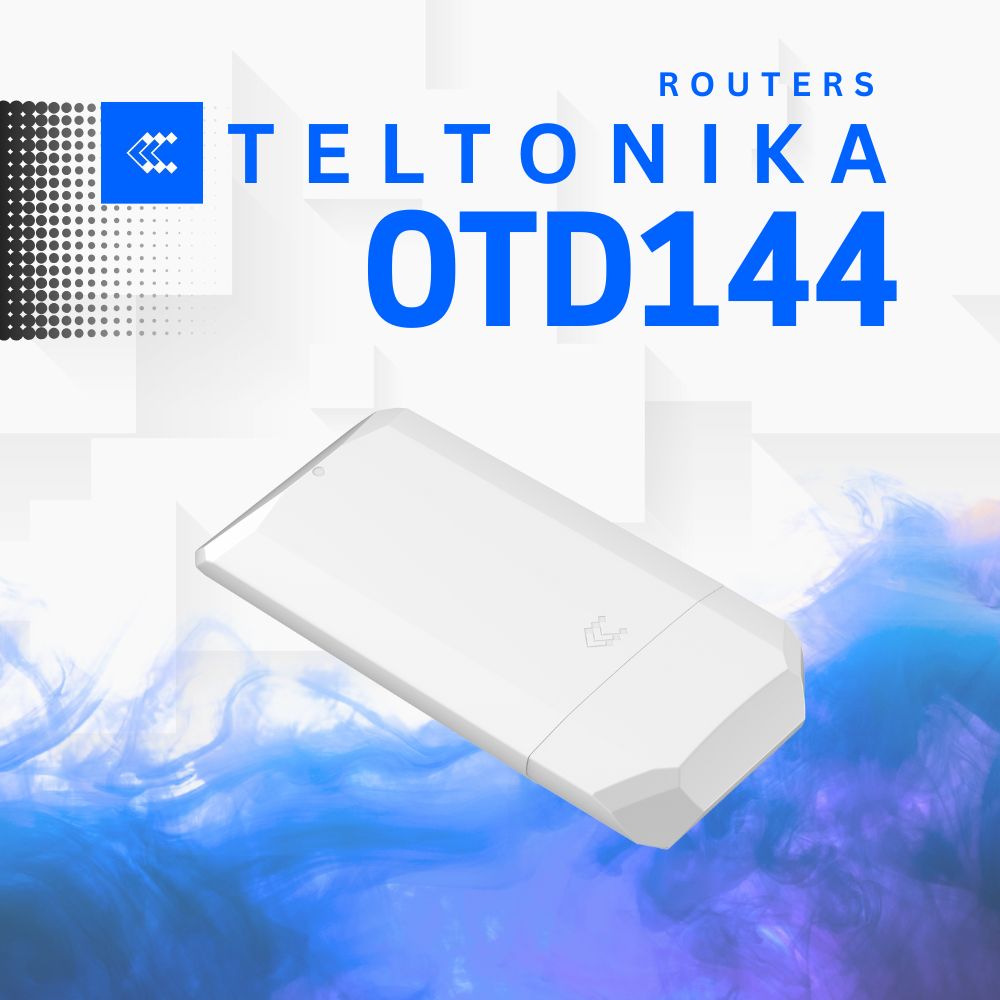

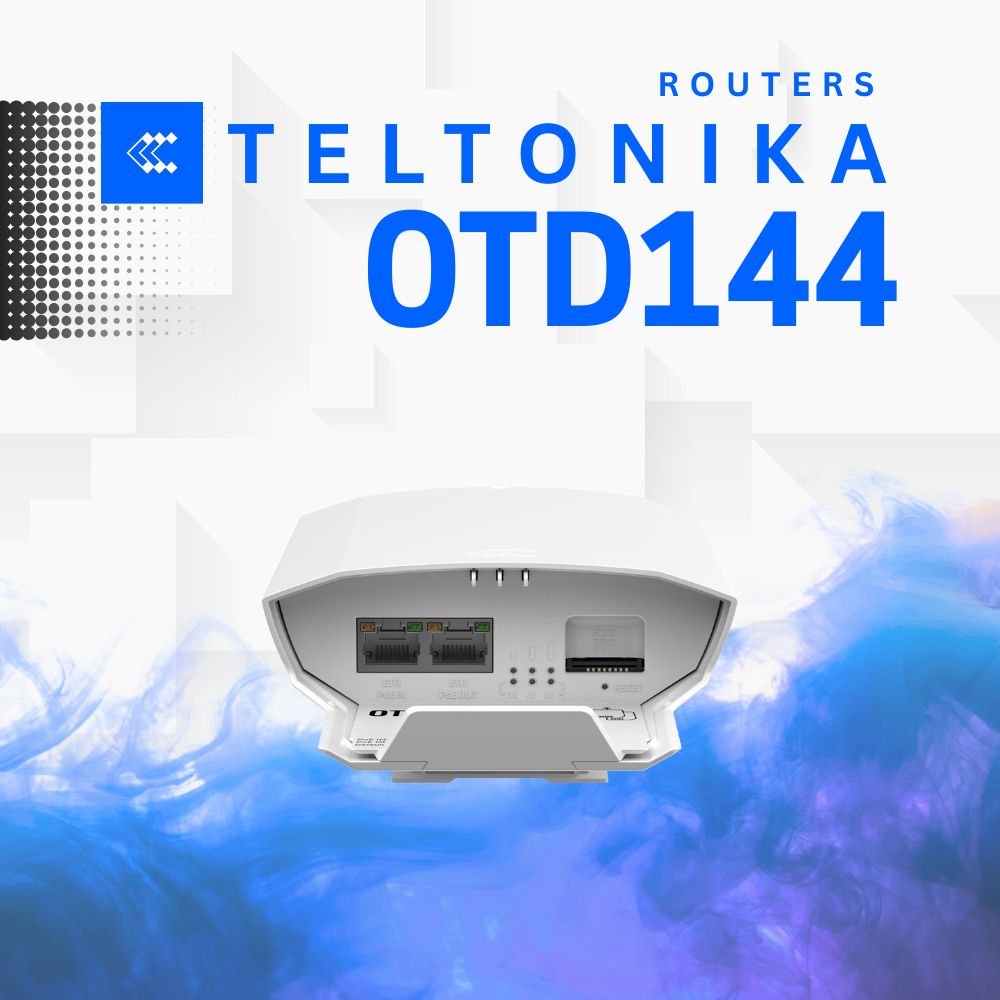

Teltonika OTD144 Outdoor 4G LTE + PoE

Outdoor 4G LTE Dual SIM Router with PoE In/Out & Internal Antennas

OTD144 เป็น Outdoor 4G LTE Cat 4 Router พร้อม Dual SIM Slots (SIM Switch & Failover), Wi-Fi 802.11n, Dual Ethernet, PoE In/Out (802.3af/at), Internal Mobile & Wi-Fi Antennas และ Plastic Housing ทนทานต่อสภาพอากาศ เหมาะสำหรับ Outdoor Installations, Remote Sites, Smart City Infrastructure, Wireless Backhaul, Public Wi-Fi Hotspots และ Surveillance Systems พร้อมระบบปฏิบัติการ RutOS และรองรับ Cloud Solutions

🚀 จุดเด่นและการใช้งาน

🏞️ Outdoor Installations • 📡 Remote Site Connectivity • 🏙️ Smart City Infrastructure • 📶 Wireless Backhaul • 🌐 Public Wi-Fi Hotspots • 📹 Surveillance Systems • 🏭 Industrial IoT • ⚡ PoE-Powered Devices • 🔄 Network Redundancy with Dual SIM

📦 HARDWARE

📡

4G LTE Network

  • 4G LTE Cat 4: 150/50 Mbps
  • 3G HSPA+: 21/5.76 Mbps
  • 2G GSM: 236.8 kbps
  • 2x Internal Mobile Antennas
  • Band Management
🔄

Dual SIM Slots

  • 2x Mini SIM (2FF)
  • 1.8V/3V Support
  • SIM Switch & Failover
  • SIM Idle Protection
  • SIM PIN Management
  • Block/Allow List
⚙️

Processor & Memory

  • CPU: Mediatek MIPS 24KEc
  • ความเร็ว: 580 MHz
  • RAM: 64 MB DDR2
  • Storage: 16 MB Flash
🌐

Ethernet & Wi-Fi

  • 2x RJ45 10/100 Mbps
  • 2x ETH (configurable as WAN)
  • Wi-Fi 802.11b/g/n (Wi-Fi 4)
  • AP & STA Mode
  • 2x Internal Wi-Fi Antennas
  • Hotspot & Hotspot 2.0
⚡

PoE Support

  • PoE In: 802.3af/at
  • Input: 42.5-57 VDC (max 21W)
  • PoE Out: 802.3af/at
  • Output: 42.5-57 VDC (max 15W)
  • Power Supply Dependent
💡

Status Indicators

  • 3x Connection Type LEDs
  • 3x Signal Strength LEDs
  • 4x Ethernet Status LEDs
  • Visual Status Monitoring
🏠

Outdoor Design

  • Housing: Plastic (PC+ASA)
  • Weather Resistant
  • Internal Antennas
  • Compact Design
  • Easy Installation
🏭

Physical Specs

  • ขนาด: 110 x 49.30 x 235 mm
  • น้ำหนัก: 315 g
  • อุณหภูมิ: -40°C ถึง +70°C
  • Industrial Grade

Hardware Specifications

Component Specification
Mobile 4G (LTE) – LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 64 MB, DDR2
Storage 16 MB
Powering options (PoE In) RJ45, PoE In: 802.3af/at (42.5 – 57 VDC, max 21 W)
PoE Out PoE Out: 802.3af/at (42.5 – 57 VDC, max 15 W - power supply unit dependent)
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
Antenna connectors 2 x Internal for Mobile, 2 x Internal for Wi-Fi
Ethernet 2 x RJ45 ports, 10/100 Mbps: 2 x ETH ports (can be configured as WAN)
Wi-Fi 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Status LEDs 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
Operating temperature -40 °C to 70 °C
Housing Plastic (PC+ASA)
Dimensions (W x H x D) 110 x 49.30 x 235 mm
Weight 315 g

💻 SOFTWARE

Operating System

Operating system RutOS (OpenWrt based Linux OS)

Mobile Features

Mobile features SIM switch, Status, SMS, USSD, Block/Allow list, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough

Wireless Features

Wireless features Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate

Network Features

Network features VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, IGMP Proxy

Security Features

Security Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation, 802.1x

VPN & Tunneling

VPN and tunneling OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

Monitoring & Management

Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS

Cloud Solutions

Cloud solutions RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core

Industrial Services

Services BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM
