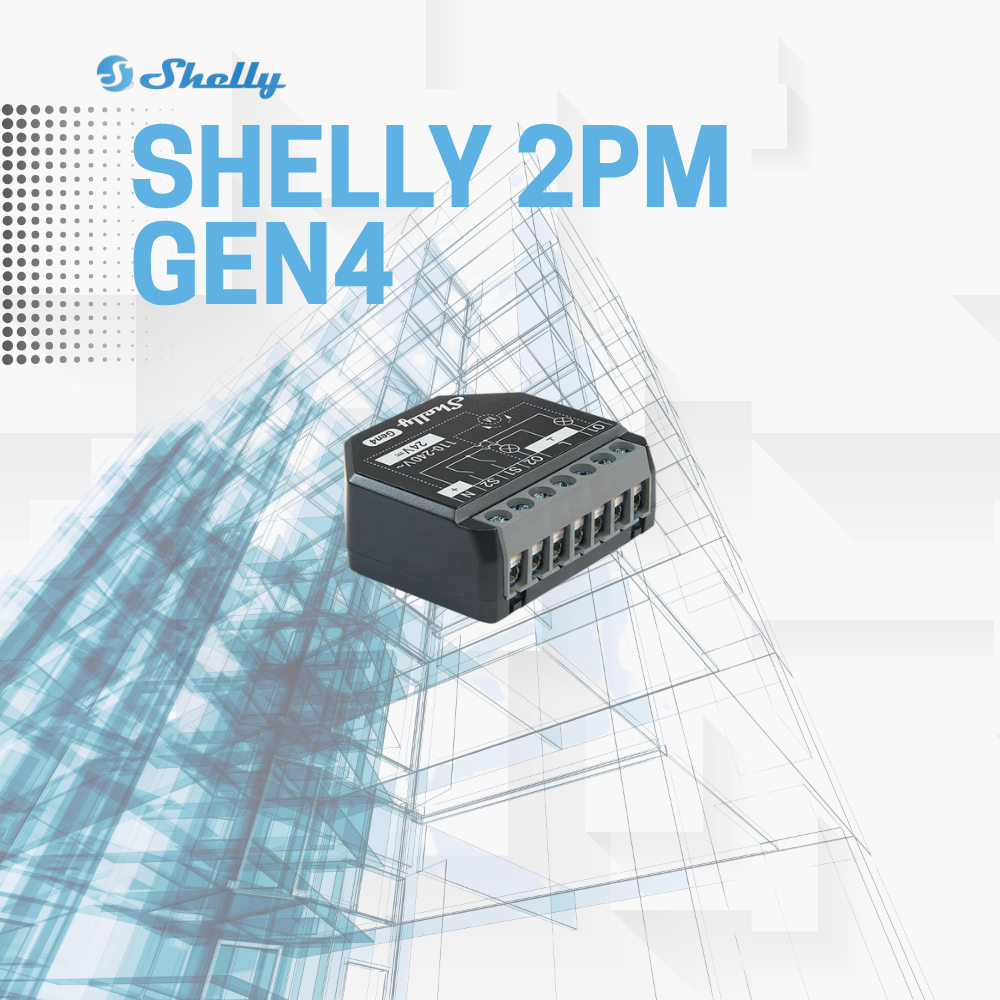

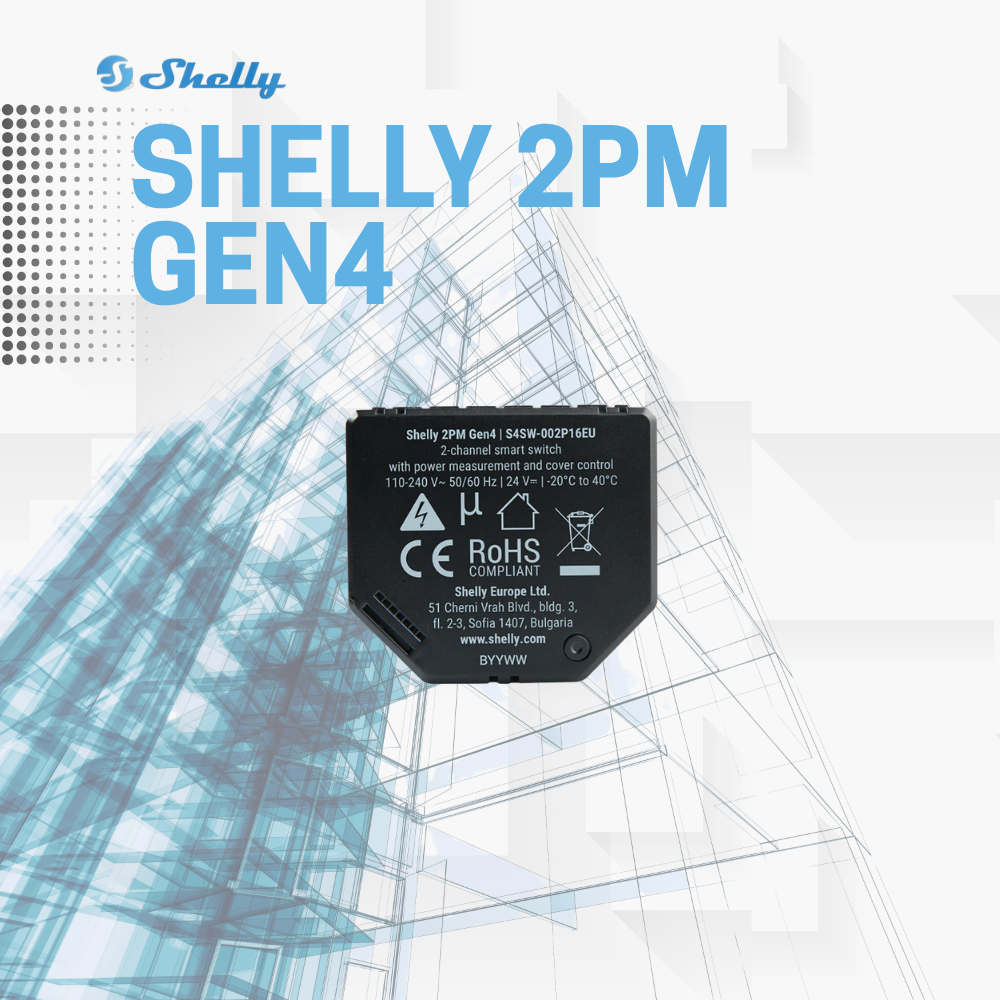

Shelly 2PM Gen4

คำอธิบาย

Shelly 2PM Gen4 2 Channels • Power Monitoring

Dual Smart Relay with Power Monitoring & Roller Shutter Mode

Shelly 2PM Gen4 เป็น Dual Smart Relay Switch พร้อม 2 Independent Channels, Real-time Power Monitoring per Channel, Wi-Fi 6 (802.11ax), Roller Shutter/Blind Control Mode, Built-in Temperature Sensor, Scripting Support และ Add-on Interface มี 2 รุ่นให้เลือก: AC (110-240V) และ DC (12-48V) รองรับ 2 Channel Relay สูงสุด 10A per Channel พร้อมวัดค่าพลังงานแยกต่างหาก เหมาะสำหรับ Dual Appliance Control, Roller Shutters, Smart Curtains, Energy Monitoring และ Advanced Home Automation

⚡ จุดเด่นและการใช้งาน

🪟 Roller Shutters/Blinds • 🚪 Smart Curtains • 📊 Dual Energy Monitoring • 💡 Dual Lighting Control • 🏠 Dual Appliance Control • 🚗 Garage Door Control • 🌡️ Temperature Monitoring • 🔌 Motor Control • 📈 Power Analytics • ⚠️ Overload Protection • 🔄 Automation & Scheduling • 📱 Remote Control • 🛠️ DIY Projects • 🌐 Add-on Sensors

📸 Wiring Diagrams & Schematics

Shelly 2PM Gen4 AC Wiring Diagram
AC Wiring Diagram (110-240V)
Shelly 2PM Gen4 DC Wiring Diagram
DC Wiring Diagram (12-48V)
Shelly 2PM Gen4 AC Cover Wiring
AC Cover Wiring Diagram
Shelly Add-on Interface
Add-on Interface Connection
Shelly 2PM Internal Schematics
Internal Schematics

⚡ Available Models

AC Model

Shelly 2PM Gen4 AC

110-240V AC, 50/60Hz

  • 2 Independent Relay Channels
  • Max Load: 10A per Channel @ 110-240V AC
  • Total Power: 4600W @ 230V / 2200W @ 110V
  • Power Monitoring: Per-Channel Voltage, Current, Power, Energy
  • Roller Shutter Mode: Up/Down Motor Control
  • Accuracy: ±1% (Voltage), ±2% (Current/Power)
  • Ideal for: Roller Shutters, Dual Appliances, Dual Lights
DC Model

Shelly 2PM Gen4 DC

12-48V DC

  • 2 Independent Relay Channels
  • Max Load: 10A per Channel @ 12-48V DC
  • Total Power: 240W @ 12V / 960W @ 48V
  • Power Monitoring: Per-Channel Voltage, Current, Power, Energy
  • Roller Shutter Mode: DC Motor Control
  • Accuracy: ±1% (Voltage), ±2% (Current/Power)
  • Ideal for: DC Motors, Solar Systems, Dual LED Control

📦 HARDWARE FEATURES

🔌

Dual Relay Control

  • 2 Independent Relay Channels
  • AC: 10A per Channel @ 110-240V
  • DC: 10A per Channel @ 12-48V
  • Switch Mode: Independent Control
  • Roller Shutter Mode: Up/Down Control
  • Manual Switch Inputs (2x)
  • Momentary/Toggle Mode
  • Interlock Protection
📊

Power Monitoring

  • Per-Channel Power Monitoring
  • Real-time Voltage Measurement
  • Real-time Current Measurement
  • Active Power (W) per Channel
  • Energy Consumption (kWh) per Channel
  • Power Factor Measurement
  • Accuracy: ±1% (V), ±2% (I/P)
  • Historical Data Logging
🪟

Roller Shutter Mode

  • Up/Down Motor Control
  • Position Control (0-100%)
  • Calibration Support
  • Tilt/Slat Control
  • Obstacle Detection
  • Safety Stop Function
  • Favorite Positions
  • Scheduling Support
📶

Wi-Fi 6 Connectivity

  • Wi-Fi 6 (802.11ax)
  • 2.4 GHz Band
  • Improved Speed & Range
  • Better Multi-Device Support
  • Lower Power Consumption
  • Stable Connection
🌡️

Temperature Sensor

  • Built-in Temperature Monitoring
  • Overheating Protection
  • Temperature-based Automation
  • Real-time Monitoring
  • Alert Notifications
  • Historical Temperature Data
🔌

Add-on Interface

  • Add-on Connector Support
  • Temperature Sensors (DS18B20)
  • Humidity Sensors (DHT22)
  • Voltage Sensors (0-30V)
  • Digital Input Sensors
  • Expand Functionality
🔄

Scripting & Automation

  • JavaScript Scripting Support
  • Custom Automation Logic
  • Power-based Triggers
  • Energy Threshold Actions
  • Position-based Automation
  • Timers & Schedules
  • Scene Control
📱

Control Options

  • Shelly Cloud App (iOS/Android)
  • Web Interface
  • Physical Switch Inputs (2x)
  • Voice Control (Alexa, Google)
  • REST API
  • MQTT Protocol
🏠

Smart Home Integration

  • Amazon Alexa
  • Google Home
  • Home Assistant
  • Samsung SmartThings
  • Apple HomeKit (via bridge)
  • Hubitat
⚠️

Safety Features

  • Overload Protection per Channel
  • Overheat Protection
  • Overcurrent Protection
  • Interlock Protection (Roller Mode)
  • Obstacle Detection (Roller Mode)
  • Voltage Monitoring
  • Alert Notifications
  • Auto Shutoff

Technical Specifications Comparison

Specification AC Model DC Model
Input Voltage 110-240V AC, 50/60Hz 12-48V DC
Relay Channels 2 Independent Channels
Max Load per Channel 10A @ 110-240V 10A @ 12-48V
Total Max Power 4600W @ 230V / 2200W @ 110V 240W @ 12V / 960W @ 48V
Power Monitoring Per-Channel: Voltage, Current, Active Power, Energy, Power Factor
Measurement Accuracy ±1% (Voltage), ±2% (Current, Power)
Operating Modes Switch Mode (Independent), Roller Shutter Mode (Up/Down)
Roller Shutter Features Position Control (0-100%), Calibration, Tilt Control, Obstacle Detection
Wi-Fi Wi-Fi 6 (802.11ax), 2.4 GHz
Temperature Sensor Built-in
Add-on Interface Yes (Temperature, Humidity, Voltage Sensors)
Scripting JavaScript Support
Switch Inputs 2x Inputs (Momentary/Toggle)
Operating Temperature -20°C to +40°C
Protocols MQTT, CoAP, WebSocket, HTTP/HTTPS
Cloud Support Shelly Cloud with Energy Analytics
Voice Control Alexa, Google Assistant

💻 SOFTWARE FEATURES

Energy Monitoring & Analytics

Per-Channel Monitoring Independent power monitoring for each channel with separate voltage, current, power, and energy tracking
Real-time Monitoring Live voltage, current, power, and energy consumption display per channel with instant updates
Historical Data Energy consumption history per channel with daily, weekly, monthly, and yearly views
Cost Tracking Calculate electricity costs per channel based on your energy rate with detailed breakdowns
Power Analytics Graphs and charts showing power usage patterns and trends over time for each channel
Energy Reports Detailed energy consumption reports per channel exportable for analysis
Peak Detection Identify peak power usage times per channel and optimize consumption

Roller Shutter Control

Position Control Precise position control from 0-100% with real-time position feedback
Calibration Automatic calibration to learn open/close times and positions
Tilt/Slat Control Control slat angle for venetian blinds and adjustable louvers
Favorite Positions Save and recall favorite positions for quick access
Obstacle Detection Automatic stop when obstacle is detected to prevent damage
Safety Stop Emergency stop function and safety timeout protection
Scheduling Time-based automation with sunrise/sunset triggers for automatic operation
Scene Integration Include roller shutter positions in multi-device scenes

Control & Management

Mobile App Shelly Cloud App (iOS & Android) - Remote control, monitoring, scheduling, energy analytics, roller shutter control
Web Interface Local web interface for configuration and control without cloud dependency
Voice Control Amazon Alexa, Google Assistant integration for hands-free control of relays and roller shutters
API Access REST API, MQTT, CoAP, WebSocket for custom integrations and automation

Automation Features

Scripting JavaScript scripting engine for custom automation logic and conditional actions
Power-based Triggers Automation based on per-channel power consumption thresholds
Energy Thresholds Set daily/monthly energy limits per channel with automatic actions when exceeded
Position-based Automation Trigger actions based on roller shutter position (e.g., turn on lights when blinds close)
Schedules Time-based automation with daily, weekly schedules and sunrise/sunset triggers
Scenes Create multi-device scenes including relay states and roller shutter positions
Temperature Actions Automation based on built-in temperature sensor readings
Webhooks HTTP webhooks for integration with external services and IFTTT

Alerts & Notifications

Overload Alerts Push notifications when power consumption exceeds safe limits per channel
Temperature Alerts Notifications when device temperature exceeds safe thresholds
Energy Alerts Alerts when daily/monthly energy consumption exceeds set limits per channel
Position Alerts Notifications when roller shutter reaches specific positions
Obstacle Alerts Notifications when obstacle is detected during roller shutter operation
Status Notifications Device on/off status changes, connection status, and errors
Email Alerts Email notifications for critical events and threshold violations

Smart Home Integration

Amazon Alexa Native integration for voice control, routines, energy monitoring, and roller shutter control
Google Home Native integration for voice control, automation, power monitoring, and blind control
Home Assistant Full integration via MQTT or native Shelly integration with energy dashboard and cover control
Samsung SmartThings Integration via custom device handlers with power monitoring and roller shutter support
Apple HomeKit Integration via Homebridge or Home Assistant bridge with blind control
Hubitat Native integration for local control with energy monitoring and cover control

Add-on Support

Temperature Sensors Connect DS18B20 temperature sensors for multi-point temperature monitoring
Humidity Sensors Connect DHT22 humidity sensors for environmental monitoring
Voltage Sensors Monitor external voltage sources (0-30V) for battery or solar monitoring
Digital Inputs Additional digital inputs for switches, buttons, or sensors
Sensor Automation Create automation based on add-on sensor readings

🎯 Use Cases & Applications

Roller Shutters Control motorized roller shutters, blinds, and awnings with position control and scheduling
Smart Curtains Automate curtain motors with sunrise/sunset triggers and favorite positions
Garage Doors Control garage door motors with position feedback and obstacle detection
Dual Appliance Control Control two independent appliances with separate energy monitoring
Dual Lighting Control Control two separate lighting circuits with independent power tracking
HVAC Control Control heating and cooling systems independently with energy monitoring
Venetian Blinds Control venetian blinds with tilt/slat angle adjustment
Solar Tracking Automate solar panel positioning or shade control based on sun position
Energy Monitoring Track power consumption of two separate circuits or appliances
Industrial Control Control industrial motors, conveyors, or machinery with dual channels
DIY Projects Custom automation projects with dual relay control and scripting
