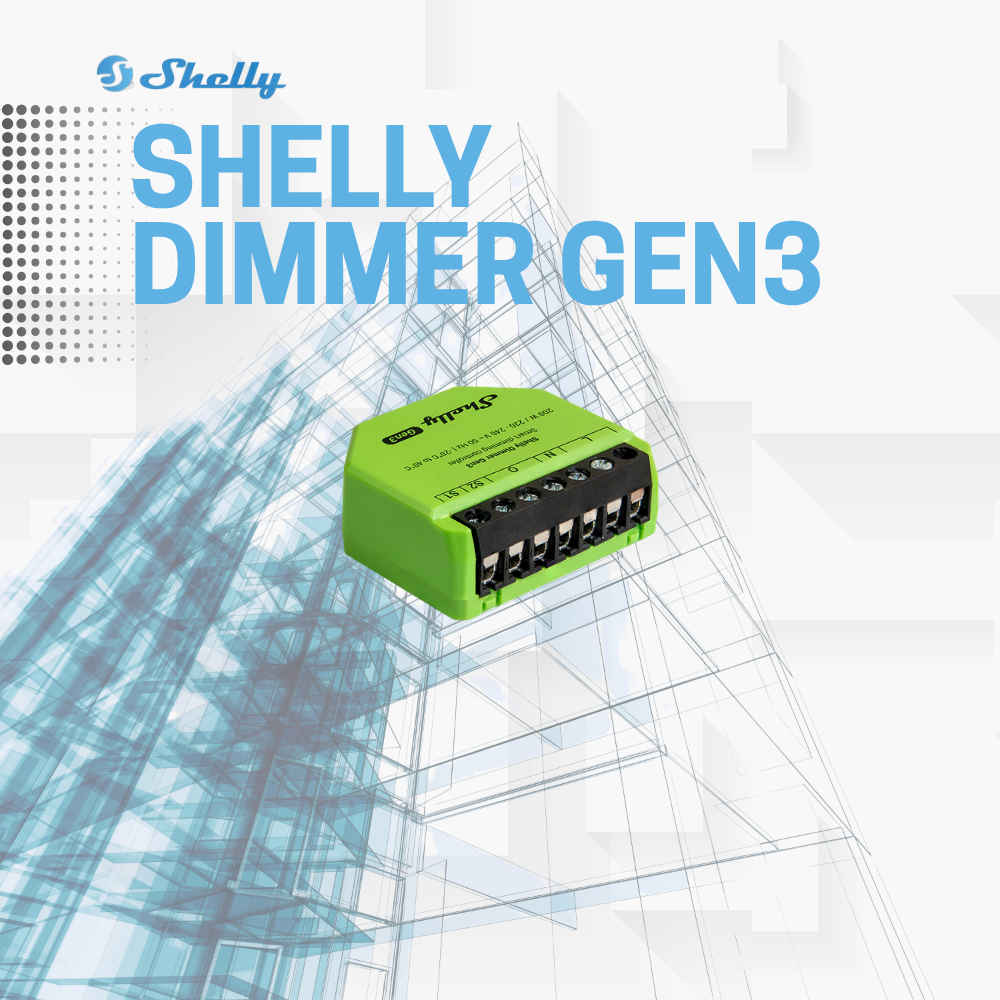

Shelly Dimmer Gen3

คำอธิบาย

Shelly Dimmer Gen3 💡 0-100% Dimming

Smart Light Dimmer Controller with Power Monitoring & Smooth Brightness Control

Shelly Dimmer Gen3 เป็น Smart Light Dimmer Controller ที่ออกแบบมาสำหรับการควบคุมความสว่างของไฟอย่างนุ่มนวล พร้อม 0-100% Brightness Control, Real-time Power Monitoring, Wi-Fi 6 (802.11ax), Multiple Dimming Modes (Leading Edge, Trailing Edge, Hybrid), Built-in Temperature Sensor, Scripting Support และ Add-on Interface รองรับ AC 110-240V, 50/60Hz สูงสุด 200W LED / 400W Incandescent เหมาะสำหรับ LED Dimming, Mood Lighting, Restaurant/Hotel Lighting และ Smart Home Lighting Control

⚡ จุดเด่นและการใช้งาน

💡 LED Dimming • 🏠 Home Lighting • 🎨 Mood Lighting • 🍽️ Restaurant/Hotel Lighting • 🎬 Home Theater • 🛏️ Bedroom Lighting • 📊 Power Monitoring • 🌡️ Temperature Protection • 🔄 Automation & Scheduling • ⏰ Sunrise/Sunset Simulation • 📱 Remote Control • 🎯 Smooth Dimming • 💡 Incandescent/Halogen • 🛠️ DIY Projects

📸 Wiring Diagrams & Schematics

Shelly Dimmer Gen3 Wiring Diagram
Standard Wiring Diagram
Shelly Dimmer Gen3 Alternative Wiring
Alternative Wiring Configuration
Shelly Dimmer Gen3 Internal Schematics
Internal Schematics

💡 Key Features

Advanced Dimming Technology

Smooth 0-100% Brightness Control

Shelly Dimmer Gen3 มาพร้อมเทคโนโลยี Dimming ที่ทันสมัย รองรับหลากหลายประเภทของหลอดไฟ ด้วยการควบคุมความสว่างที่นุ่มนวลและแม่นยำ

  • 0-100% Smooth Brightness Control
  • Multiple Dimming Modes: Leading Edge, Trailing Edge, Hybrid
  • Compatible with LED, Incandescent, Halogen, Dimmable CFL
  • Max Load: 200W LED / 400W Incandescent
  • Flicker-Free Dimming Technology
  • Soft Start/Stop for Extended Bulb Life
  • Minimum Brightness Adjustment
  • Maximum Brightness Adjustment

📦 HARDWARE FEATURES

💡

Dimming Control

  • 0-100% Brightness Control
  • Leading Edge Dimming (TRIAC)
  • Trailing Edge Dimming (MOSFET)
  • Hybrid Dimming Mode
  • Max Load: 200W LED
  • Max Load: 400W Incandescent
  • Flicker-Free Operation
  • Soft Start/Stop
  • Min/Max Brightness Adjustment
📊

Power Monitoring

  • Real-time Power Monitoring
  • Voltage Measurement
  • Current Measurement
  • Active Power (W) Monitoring
  • Energy Consumption (kWh)
  • Power Factor Measurement
  • Accuracy: ±1% (V), ±2% (I/P)
  • Historical Data Logging
📶

Wi-Fi 6 Connectivity

  • Wi-Fi 6 (802.11ax)
  • 2.4 GHz Band
  • Improved Speed & Range
  • Better Multi-Device Support
  • Lower Power Consumption
  • Stable Connection
  • Local Control Available
🎯

Bulb Compatibility

  • LED Bulbs (up to 200W)
  • Incandescent (up to 400W)
  • Halogen Bulbs
  • Dimmable CFL
  • 12V LED (with transformer)
  • Auto-Detection of Load Type
  • Calibration Support
🌡️

Temperature Sensor

  • Built-in Temperature Monitoring
  • Overheating Protection
  • Automatic Power Reduction
  • Temperature-based Automation
  • Real-time Monitoring
  • Alert Notifications
  • Historical Temperature Data
🔌

Add-on Interface

  • Add-on Connector Support
  • Temperature Sensors (DS18B20)
  • Humidity Sensors (DHT22)
  • Voltage Sensors (0-30V)
  • Digital Input Sensors
  • Expand Functionality
🔄

Scripting & Automation

  • JavaScript Scripting Support
  • Custom Automation Logic
  • Brightness-based Triggers
  • Power-based Actions
  • Temperature-based Control
  • Timers & Schedules
  • Scene Control
📱

Control Options

  • Shelly Cloud App (iOS/Android)
  • Web Interface
  • Physical Switch Inputs (2x)
  • Voice Control (Alexa, Google)
  • REST API
  • MQTT Protocol
  • Local Control
🏠

Smart Home Integration

  • Amazon Alexa
  • Google Home
  • Home Assistant
  • Samsung SmartThings
  • Apple HomeKit (via bridge)
  • Hubitat
  • Native Dimmer Control
⚠️

Safety Features

  • Overload Protection
  • Overheat Protection
  • Overcurrent Protection
  • Short Circuit Protection
  • Automatic Power Reduction
  • Voltage Monitoring
  • Alert Notifications
  • Auto Shutoff

Technical Specifications

Model Shelly Dimmer Gen3
Input Voltage 110-240V AC, 50/60Hz
Dimming Range 0-100% Smooth Brightness Control
Max Load (LED) 200W
Max Load (Incandescent) 400W
Max Load (Halogen) 400W
Dimming Modes Leading Edge (TRIAC), Trailing Edge (MOSFET), Hybrid
Compatible Bulbs LED, Incandescent, Halogen, Dimmable CFL, 12V LED (with transformer)
Power Monitoring Voltage, Current, Active Power, Energy Consumption, Power Factor
Measurement Accuracy ±1% (Voltage), ±2% (Current, Power)
Wi-Fi Wi-Fi 6 (802.11ax), 2.4 GHz
Temperature Sensor Built-in with Overheating Protection
Add-on Interface Yes (Temperature, Humidity, Voltage Sensors)
Scripting JavaScript Support
Switch Inputs 2x Inputs (Momentary/Toggle/Dimmer Switch)
Soft Start/Stop Yes (Configurable)
Flicker-Free Yes
Min/Max Brightness Adjustable
Calibration Automatic Load Detection & Calibration
Operating Temperature -20°C to +40°C
Protocols MQTT, CoAP, WebSocket, HTTP/HTTPS
Cloud Support Shelly Cloud with Energy Analytics
Voice Control Alexa, Google Assistant
Dimensions Compact Design for Easy Installation

💻 SOFTWARE FEATURES

Dimming Control Features

Brightness Control Smooth 0-100% brightness control with precise adjustment and real-time feedback
Dimming Modes Leading Edge (TRIAC) for incandescent/halogen, Trailing Edge (MOSFET) for LED, Hybrid mode for mixed loads
Auto-Detection Automatic detection of load type and optimal dimming mode selection
Calibration Automatic calibration to optimize dimming performance for specific bulbs
Min/Max Brightness Set minimum and maximum brightness levels to prevent flickering or over-brightness
Soft Start/Stop Gradual brightness changes to extend bulb life and create smooth transitions
Fade Time Adjustable fade time for smooth on/off transitions (0-10 seconds)
Flicker-Free Advanced technology eliminates flickering at all brightness levels

Energy Monitoring & Analytics

Real-time Monitoring Live voltage, current, power, and energy consumption display with instant updates
Historical Data Energy consumption history with daily, weekly, monthly, and yearly views
Cost Tracking Calculate electricity costs based on your energy rate with detailed breakdowns
Power Analytics Graphs and charts showing power usage patterns at different brightness levels
Efficiency Monitoring Track energy efficiency and optimize brightness for energy savings

Control & Management

Mobile App Shelly Cloud App (iOS & Android) - Remote control, brightness adjustment, scheduling, energy analytics
Web Interface Local web interface for configuration and control without cloud dependency
Voice Control Amazon Alexa, Google Assistant integration for hands-free dimming control ("Alexa, dim the lights to 50%")
API Access REST API, MQTT, CoAP, WebSocket for custom integrations and automation
Local Control Works without internet connection for privacy and reliability

Automation Features

Scripting JavaScript scripting engine for custom automation logic and conditional actions
Brightness-based Triggers Trigger actions based on brightness level (e.g., turn on other lights when dimmed below 20%)
Sunrise/Sunset Simulation Gradual brightness changes to simulate natural sunrise and sunset
Temperature-based Control Automatic brightness adjustment based on temperature (e.g., dim when hot)
Schedules Time-based automation with daily, weekly schedules and vacation mode
Scenes Create multi-device scenes with specific brightness levels for different moods
Circadian Rhythm Automatic brightness adjustment throughout the day to match natural light cycles
Webhooks HTTP webhooks for integration with external services and IFTTT

Alerts & Notifications

Overload Alerts Notifications when power consumption exceeds safe limits
Temperature Alerts Notifications when device temperature exceeds safe thresholds
Bulb Failure Detection Detect and notify when bulb fails or needs replacement
Energy Alerts Alerts when daily/monthly energy consumption exceeds set limits
Status Notifications Device on/off status changes, connection status, and errors
Email Alerts Email notifications for critical events and threshold violations

Smart Home Integration

Amazon Alexa Native integration for voice control, routines, and brightness control ("Alexa, set bedroom lights to 30%")
Google Home Native integration for voice control, automation, and dimming ("Hey Google, dim the living room lights")
Home Assistant Full integration via MQTT or native Shelly integration with light entity and brightness control
Samsung SmartThings Integration via custom device handlers with dimmer support
Apple HomeKit Integration via Homebridge or Home Assistant bridge with dimmer control
Hubitat Native integration for local control with dimmer and energy monitoring

Add-on Support

Temperature Sensors Connect DS18B20 temperature sensors for multi-point temperature monitoring
Humidity Sensors Connect DHT22 humidity sensors for environmental monitoring and automation
Voltage Sensors Monitor external voltage sources (0-30V) for battery or solar monitoring
Digital Inputs Additional digital inputs for switches, buttons, or sensors
Sensor Automation Create automation based on add-on sensor readings (e.g., dim lights when temperature > 25°C)

🎯 Use Cases & Applications

LED Dimming Control LED bulbs with smooth, flicker-free dimming from 0-100%
Home Lighting Smart control of home lighting with scheduling and automation
Mood Lighting Create different lighting moods for various activities (reading, watching TV, dining)
Restaurant/Hotel Lighting Professional lighting control for commercial spaces with scene management
Home Theater Automatic dimming when starting movies with smooth transitions
Bedroom Lighting Gentle wake-up with sunrise simulation and sleep-friendly dimming
Office Lighting Adjust brightness based on natural light levels for optimal working conditions
Energy Efficiency Reduce energy consumption by dimming lights when full brightness is not needed
Incandescent/Halogen Control traditional incandescent and halogen bulbs with smooth dimming
Retail Lighting Adjust store lighting to highlight products and create ambiance
Art Gallery Lighting Precise lighting control to showcase artwork with optimal brightness
DIY Projects Custom lighting projects with dimming control and scripting

💡 Installation Tips

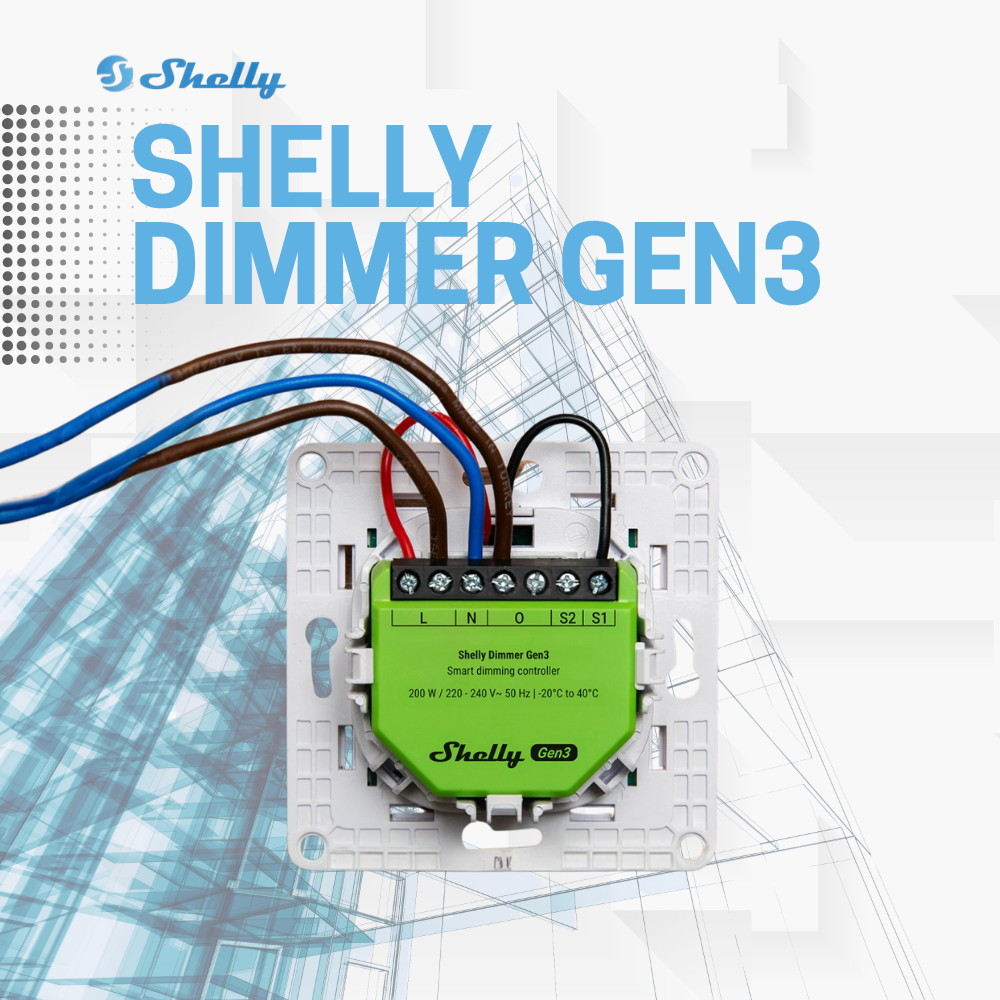

Wiring Follow wiring diagram carefully. Connect Line (L), Neutral (N), and Load (O) correctly
Calibration Run automatic calibration after installation to optimize dimming for your specific bulbs
Bulb Selection Use dimmable bulbs only. Check bulb specifications for dimming compatibility
Min/Max Adjustment Adjust minimum and maximum brightness to prevent flickering and optimize performance
Switch Inputs Connect physical switches for manual control. Supports momentary, toggle, or dimmer switches
Safety First Always turn off power before installation. Use qualified electrician if unsure
Testing Test dimming at all brightness levels after installation to ensure smooth operation
Positioning Install in a location with good Wi-Fi signal and adequate ventilation
