TRB160

คำอธิบาย

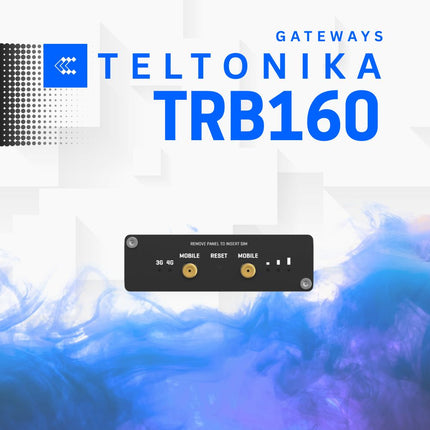

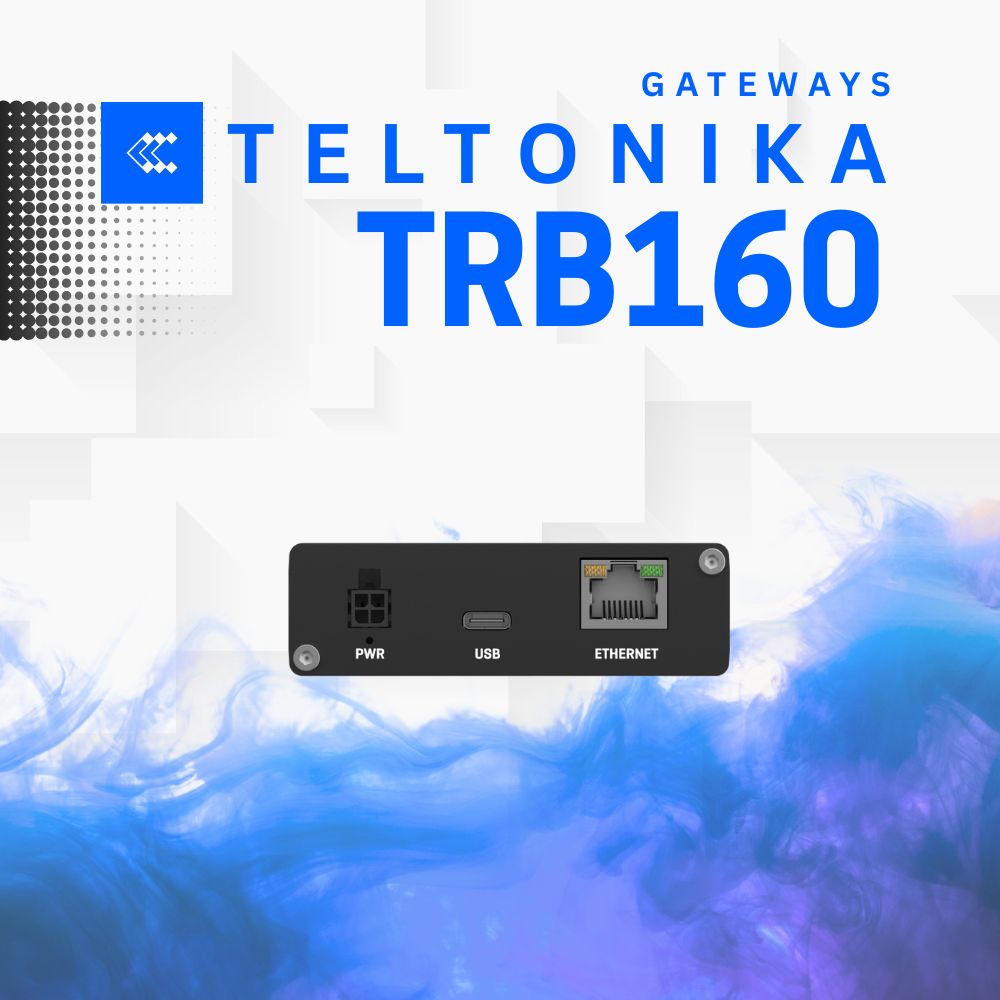

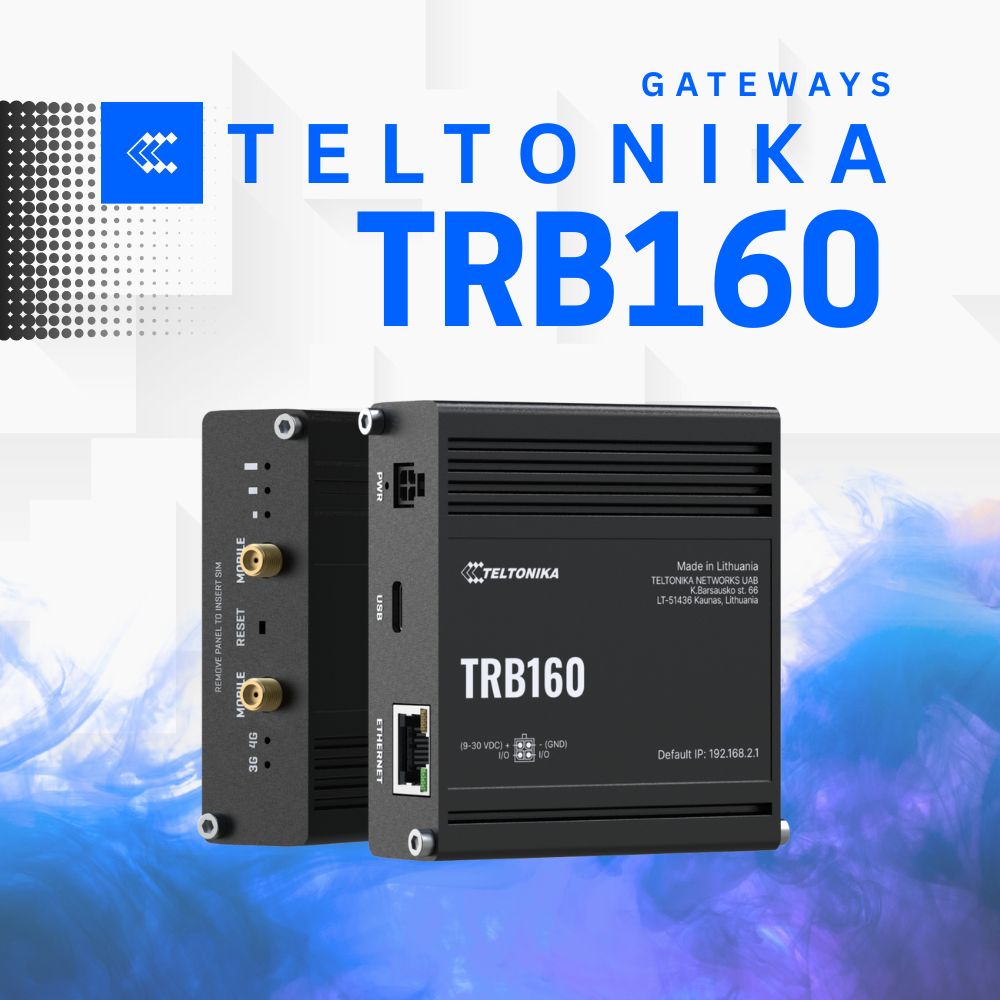

Teltonika TRB160 4G LTE Cat 6 • 300 Mbps

Industrial 4G LTE Cat 6 Gateway with Gigabit Ethernet

TRB160 เป็น Industrial 4G LTE Cat 6 Gateway ความเร็วสูงสุด 300 Mbps พร้อม Gigabit Ethernet, USB Type-C, Digital I/O และ Hotspot Captive Portal เหมาะสำหรับงาน Industrial IoT, VPN Connectivity, Remote Access และ High-Speed Data Applications พร้อมระบบปฏิบัติการ RutOS

🚀 จุดเด่นและการใช้งาน

🏭 Industrial IoT & Automation • 🌐 High-Speed Internet Backup • 🔒 VPN & Secure Remote Access • 📡 Wireless WAN Connectivity • 🏨 Hotspot & Captive Portal • ⚡ Gigabit Ethernet Connectivity • 📊 Cloud Integration & Management

📹 วิดีโอแนะนำผลิตภัณฑ์

📡

Mobile Network

  • 4G LTE Cat 6 (300 Mbps)
  • 3G UMTS/HSPA+ (42 Mbps)
  • 2x SMA Antenna Connectors
  • 1x Internal SIM Slot (Mini 2FF)
  • eSIM Support (Optional)
⚙️

Processor & Memory

  • CPU: Qualcomm ARM Cortex-A7
  • ความเร็ว: 1.2 GHz
  • RAM: 128 MB
  • Storage: 256 MB Flash
🌐

Ethernet & USB

  • 1x Gigabit Ethernet RJ45
  • 10/100/1000 Mbps
  • 1x USB Type-C (USB 3.0)
  • Power & Data Support
🔌

I/O & Power

  • 1x Digital Input (0-30V)
  • 1x Digital Output (Max 300mA)
  • 4-pin DC Socket: 9-30 VDC
  • USB Type-C: 5 VDC
🔋

Physical Specs

  • ขนาด: 83 x 25 x 74.2 mm
  • น้ำหนัก: 172 g
  • Housing: Anodized Aluminum
  • อุณหภูมิ: -40°C ถึง +75°C
💡

Status LEDs

  • Connection Type: 2x
  • Signal Strength: 3x
  • Ethernet Status: 2x
  • Power: 1x

Hardware Specifications

Component Specification
Mobile 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
CPU Qualcomm, 1.2 GHz, ARM Cortex-A7
RAM 128 MB
Memory 256 MB
Powering options 4-pin industrial DC power socket, 9 – 30 VDC | USB Type-C: 5 VDC
SIM 1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional)
Antenna connectors 2 x SMA for Mobile
Ethernet 1 x RJ45 port, 10/100/1000 Mbps
Inputs/Outputs 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high | 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Other 1x USB Type-C Connector USB3.0 (For power and data)
Status LEDs 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
Operating temperature -40 °C to 75 °C
Housing Anodized aluminum housing and panels
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 172 g

Operating System

Operating system RutOS (OpenWrt based Linux OS)

Mobile Features

Mobile features Status, SMS, USSD, Black/White list, Multiple PDN, Band management, APN, Bridge, Passthrough

Network Protocols

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

VPN & Tunneling

VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

Monitoring & Management

Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS

Cloud Solutions

Cloud solutions RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Hotspot Features

Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

TRB160

รูปแบบสินค้า

Teltonika TRB160 4G LTE Cat 6 • 300 Mbps Industrial 4G LTE Cat 6 Gateway with Gigabit Ethernet TRB160 เป็น... อ่านเพิ่มเติม

0.00 ฿

      คำอธิบาย

      Teltonika TRB160 4G LTE Cat 6 • 300 Mbps

      Industrial 4G LTE Cat 6 Gateway with Gigabit Ethernet

      TRB160 เป็น Industrial 4G LTE Cat 6 Gateway ความเร็วสูงสุด 300 Mbps พร้อม Gigabit Ethernet, USB Type-C, Digital I/O และ Hotspot Captive Portal เหมาะสำหรับงาน Industrial IoT, VPN Connectivity, Remote Access และ High-Speed Data Applications พร้อมระบบปฏิบัติการ RutOS

      🚀 จุดเด่นและการใช้งาน

      🏭 Industrial IoT & Automation • 🌐 High-Speed Internet Backup • 🔒 VPN & Secure Remote Access • 📡 Wireless WAN Connectivity • 🏨 Hotspot & Captive Portal • ⚡ Gigabit Ethernet Connectivity • 📊 Cloud Integration & Management

      📹 วิดีโอแนะนำผลิตภัณฑ์

      📡

      Mobile Network

      • 4G LTE Cat 6 (300 Mbps)
      • 3G UMTS/HSPA+ (42 Mbps)
      • 2x SMA Antenna Connectors
      • 1x Internal SIM Slot (Mini 2FF)
      • eSIM Support (Optional)
      ⚙️

      Processor & Memory

      • CPU: Qualcomm ARM Cortex-A7
      • ความเร็ว: 1.2 GHz
      • RAM: 128 MB
      • Storage: 256 MB Flash
      🌐

      Ethernet & USB

      • 1x Gigabit Ethernet RJ45
      • 10/100/1000 Mbps
      • 1x USB Type-C (USB 3.0)
      • Power & Data Support
      🔌

      I/O & Power

      • 1x Digital Input (0-30V)
      • 1x Digital Output (Max 300mA)
      • 4-pin DC Socket: 9-30 VDC
      • USB Type-C: 5 VDC
      🔋

      Physical Specs

      • ขนาด: 83 x 25 x 74.2 mm
      • น้ำหนัก: 172 g
      • Housing: Anodized Aluminum
      • อุณหภูมิ: -40°C ถึง +75°C
      💡

      Status LEDs

      • Connection Type: 2x
      • Signal Strength: 3x
      • Ethernet Status: 2x
      • Power: 1x

      Hardware Specifications

      Component Specification
      Mobile 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
      CPU Qualcomm, 1.2 GHz, ARM Cortex-A7
      RAM 128 MB
      Memory 256 MB
      Powering options 4-pin industrial DC power socket, 9 – 30 VDC | USB Type-C: 5 VDC
      SIM 1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional)
      Antenna connectors 2 x SMA for Mobile
      Ethernet 1 x RJ45 port, 10/100/1000 Mbps
      Inputs/Outputs 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high | 1 x Digital Output, Open collector output, max output 30 V, 300 mA
      Other 1x USB Type-C Connector USB3.0 (For power and data)
      Status LEDs 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
      Operating temperature -40 °C to 75 °C
      Housing Anodized aluminum housing and panels
      Dimensions (W x H x D) 83 x 25 x 74.2 mm
      Weight 172 g

      Operating System

      Operating system RutOS (OpenWrt based Linux OS)

      Mobile Features

      Mobile features Status, SMS, USSD, Black/White list, Multiple PDN, Band management, APN, Bridge, Passthrough

      Network Protocols

      Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

      VPN & Tunneling

      VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

      Monitoring & Management

      Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS

      Cloud Solutions

      Cloud solutions RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

      Hotspot Features

      Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
