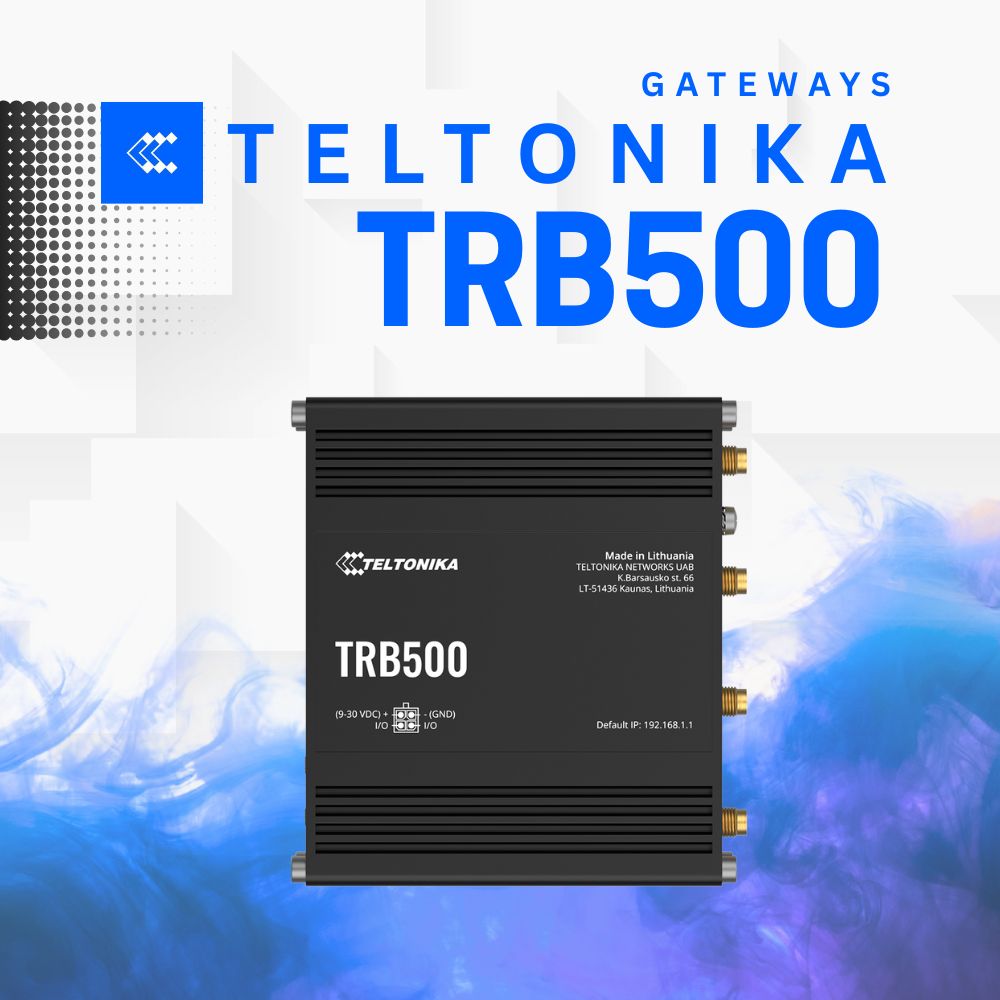

Teltonika TRB500 5G Sub-6GHz + 4x4 MIMO

Industrial 5G Gateway with Gigabit Ethernet

TRB500 เป็น Industrial 5G Sub-6GHz Gateway รองรับ SA/NSA ความเร็วสูงสุด 2.1/3.3 Gbps DL พร้อม 4x4 MIMO, LTE Cat 20 Fallback (2.0 Gbps), Gigabit Ethernet และ DIN Rail Mount เหมาะสำหรับ High-Speed Industrial IoT, Smart Factory, Video Surveillance และ Mission-Critical Applications พร้อมระบบปฏิบัติการ RutOS

🚀 จุดเด่นและการใช้งาน

🏭 Smart Factory & Industry 4.0 • 📹 High-Speed Video Surveillance • 🚄 Transportation & Railway • 🏥 Healthcare & Telemedicine • 🎮 AR/VR Applications • 📡 High-Bandwidth IoT • ⚡ Mission-Critical Communications • 🔒 Secure Industrial Networks

📹 วิดีโอแนะนำผลิตภัณฑ์

📦 HARDWARE

🚀

5G Network

  • 5G Sub-6GHz SA/NSA
  • DL: 2.1/3.3 Gbps (4x4 MIMO)
  • UL: 900/600 Mbps (2x2)

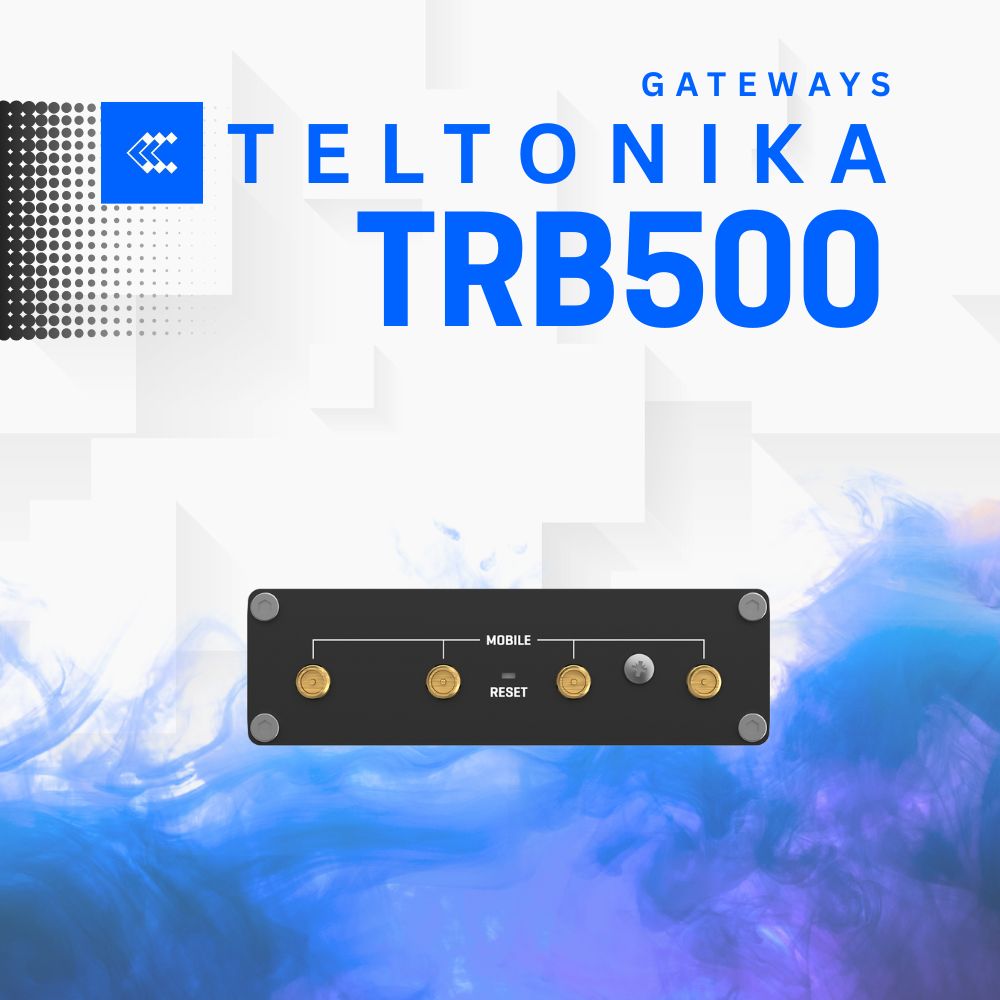

  • 4x SMA Mobile Antenna
  • Single SIM (Mini 2FF)
📡

4G/3G Fallback

  • LTE Cat 20: 2.0 Gbps DL
  • LTE Upload: 200 Mbps
  • 3G HSPA+: 42 Mbps DL
  • 3G Upload: 5.76 Mbps
  • Auto Network Selection
⚙️

Processor & Memory

  • CPU: ARM Cortex A7
  • ความเร็ว: 1.5 GHz Single Core
  • Flash Storage: 512 MB
  • RAM: 256 MB
🌐

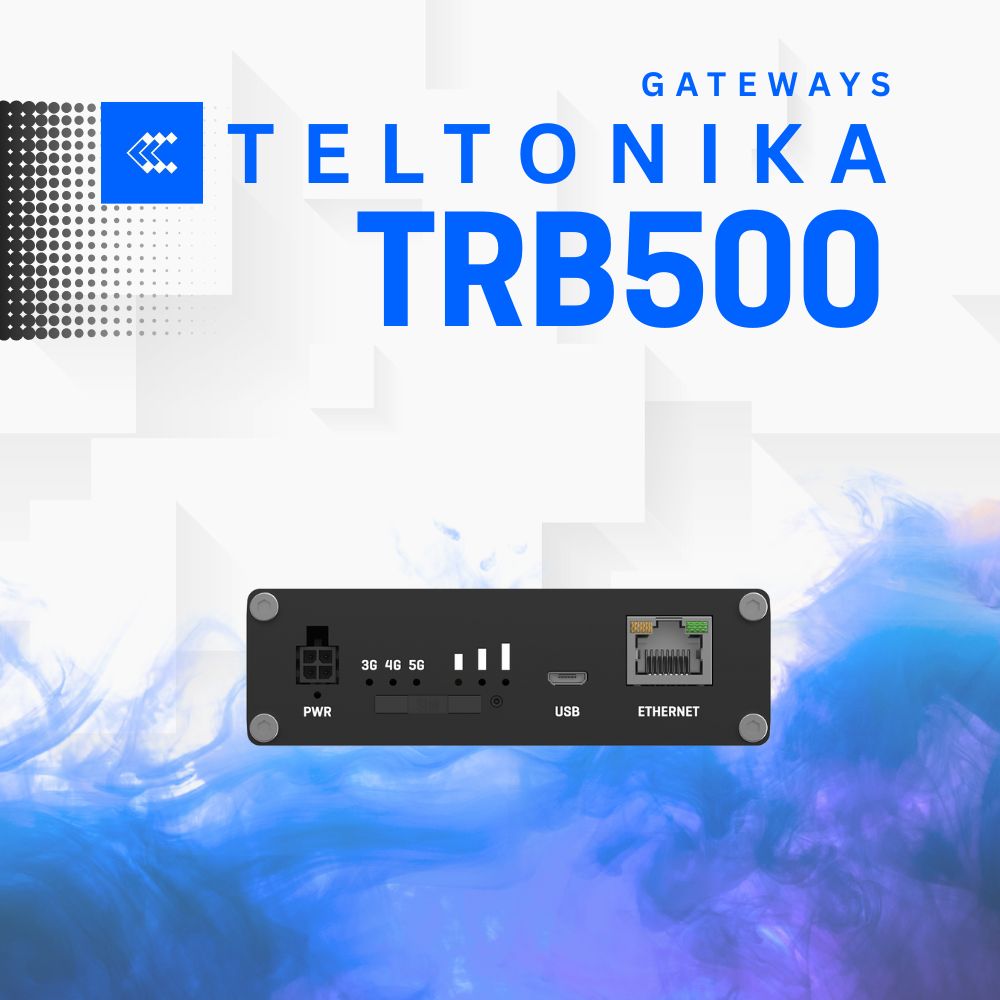

Ethernet & I/O

  • 1x Gigabit Ethernet
  • 10/100/1000 Mbps
  • 1x Digital Input
  • 1x Digital Output (Open Collector)
  • 1x Micro USB Slave
🔋

Power & Mounting

  • 4-pin Power Socket
  • Input: 9-30 VDC
  • DIN Rail Mount (2 sides)
  • Flat Surface Placement
  • Grounding Screw
🏭

Physical Specs

  • ขนาด: 100 x 30 x 93.4 mm
  • น้ำหนัก: 241 g
  • Housing: Aluminum
  • อุณหภูมิ: -40°C ถึง +75°C
  • Industrial Grade

Hardware Specifications

Component Specification
Mobile 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
CPU Single core ARM Cortex A7, 1.5 GHz
Flash Storage 512 MB
RAM 256 MB
Powering option 4-pin power socket, 9-30 VDC
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Antenna connectors 4 x SMA for Mobile
Ethernet 1x 10/100/1000 Mbps Ethernet port
Inputs/Outputs On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x Micro USB slave, 1 x Grounding screw
Status LEDs 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
Operating temperature -40° C to 75° C
Housing Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement
Dimensions (W x H x D) 100 x 30 x 93.4 mm
Weight 241g

💻 SOFTWARE

Operating System

Operating system RutOS (OpenWrt based Linux OS)

Mobile Features

Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits

Network Protocols

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)

Network Features

Network features Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring

Monitoring & Management

Monitoring and Management WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS

VPN & Tunneling

VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier

Cloud Solutions

Cloud solutions RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Security Features

Security Authentication, Pre-configured firewall rules, Attack prevention, Mobile quota control, WEB filter, Access control

อ่าน มากกว่า
