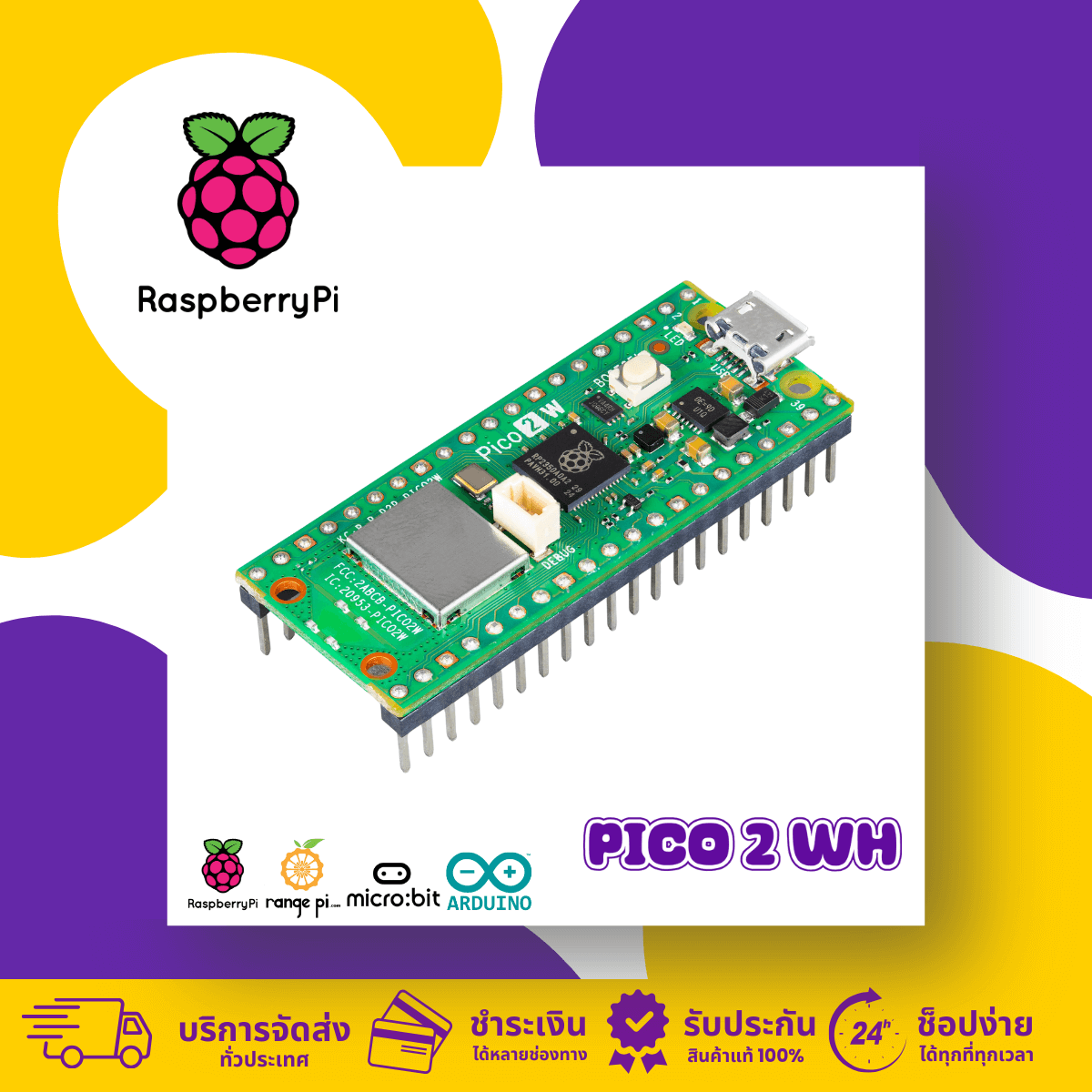

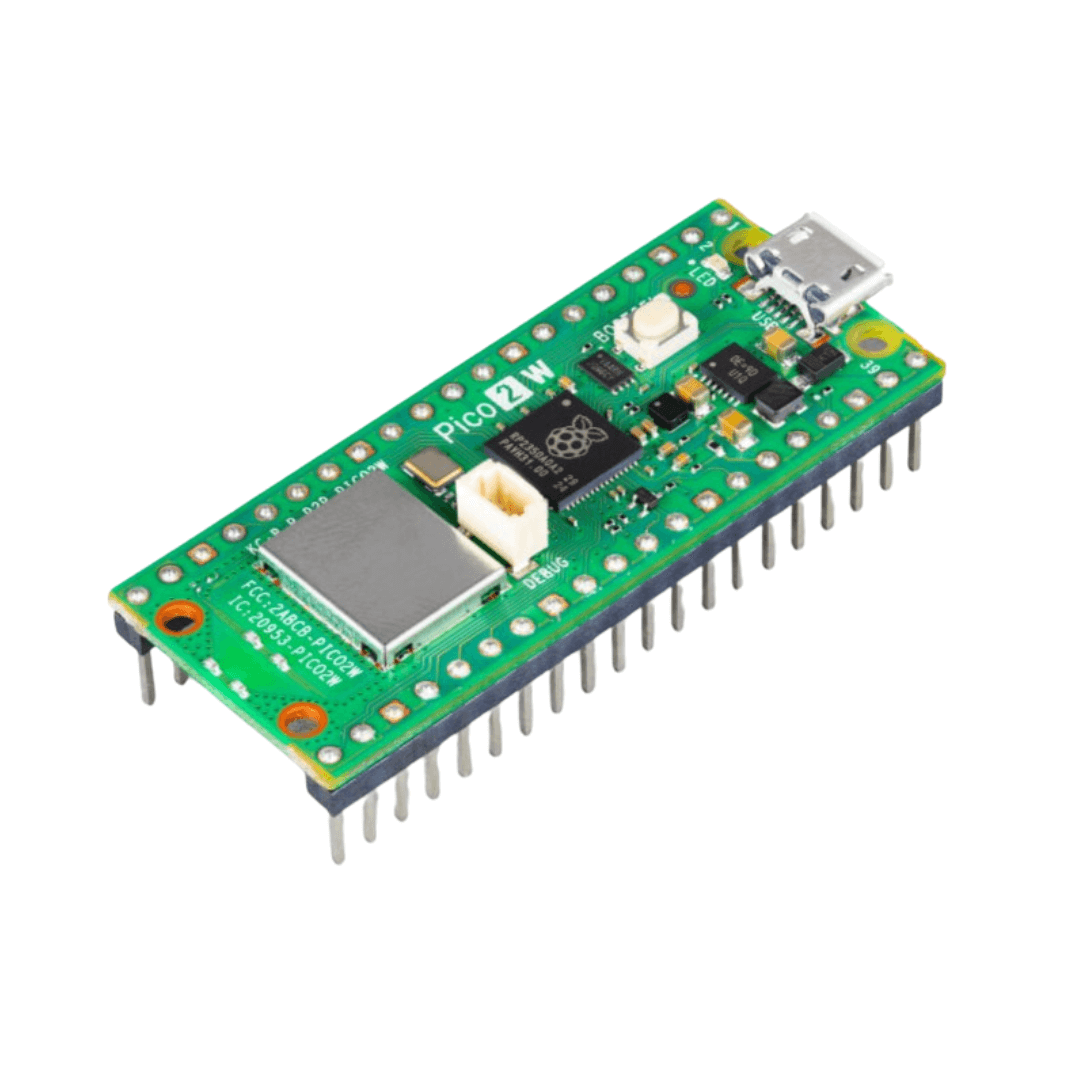

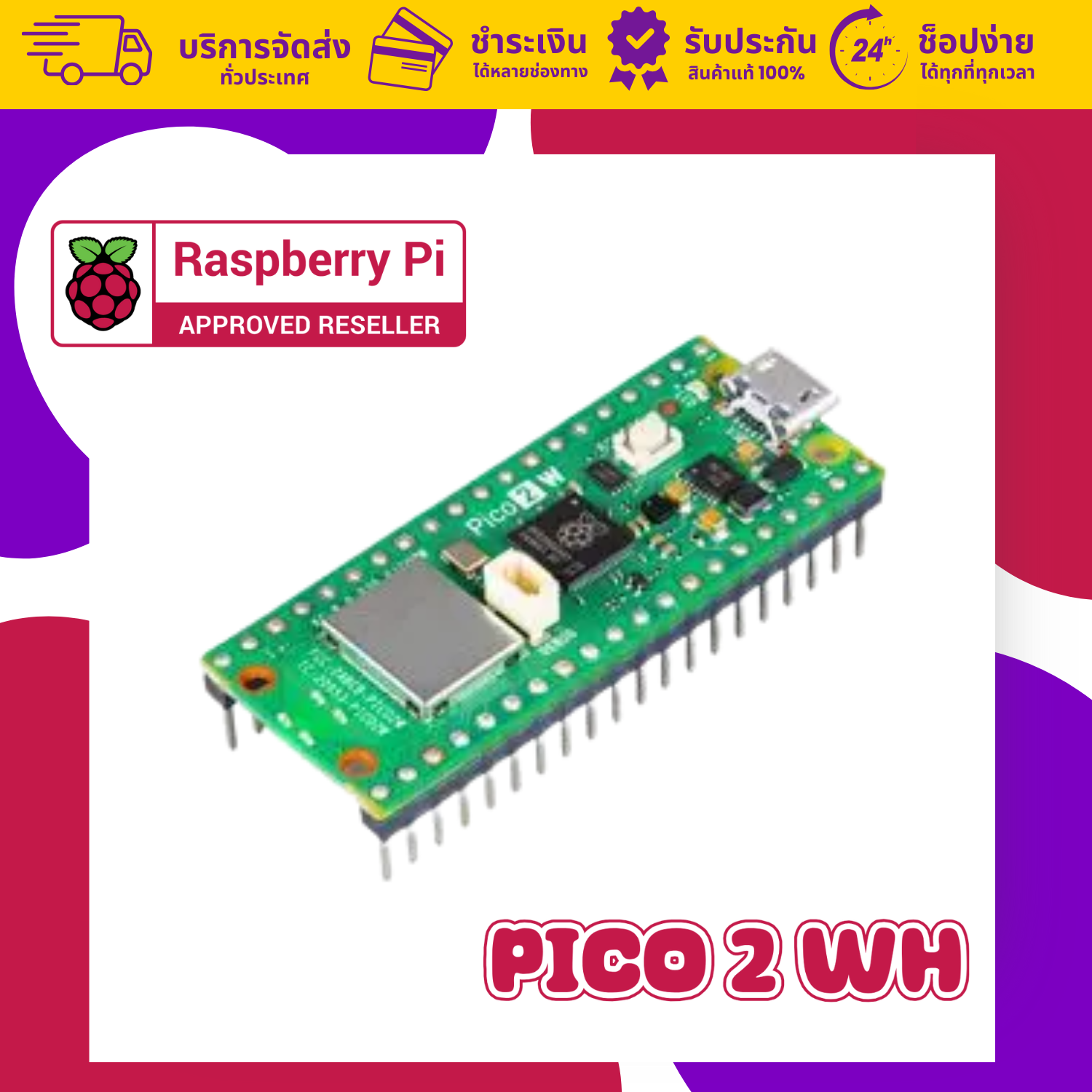

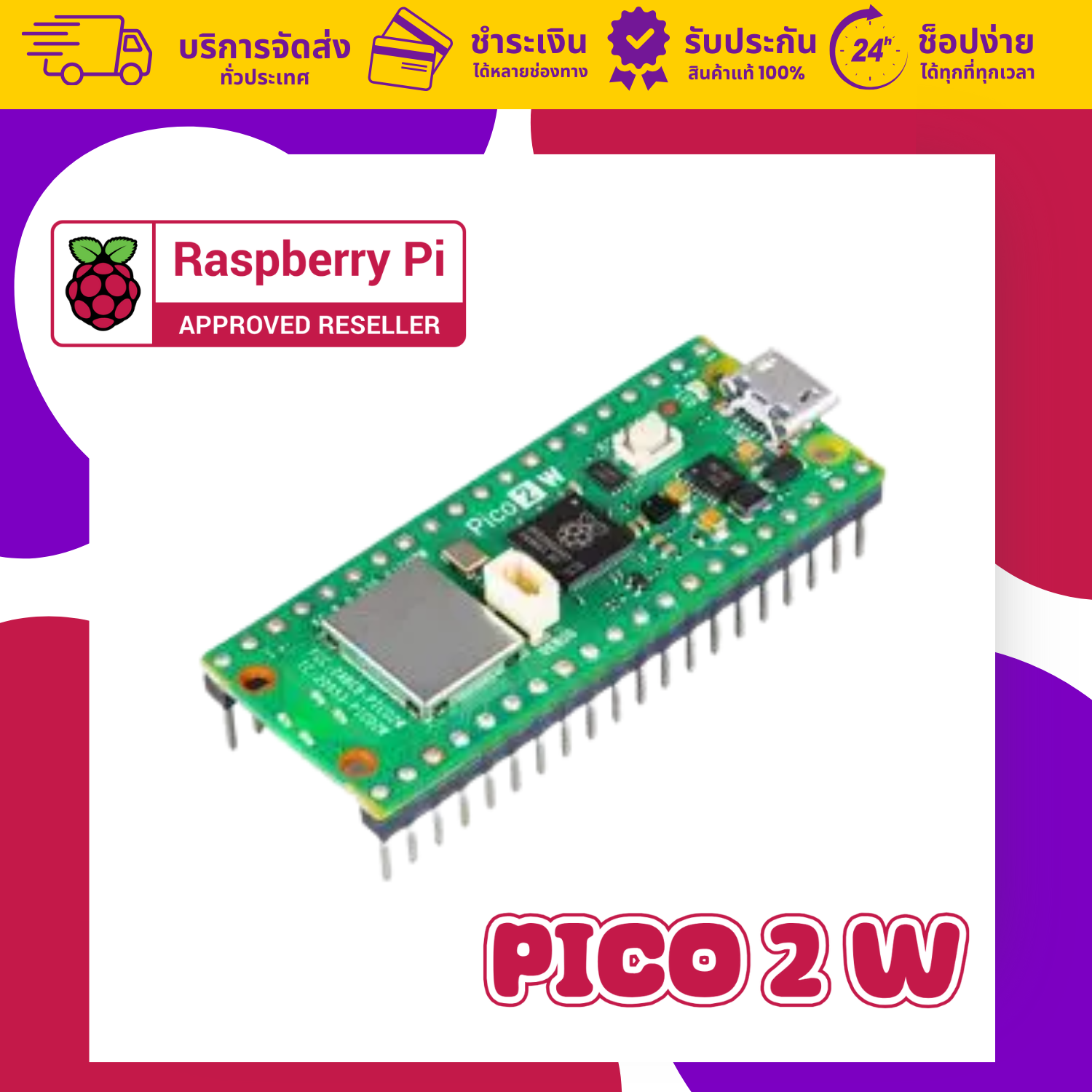

Raspberry Pi Pico 2 Series
The Raspberry Pi Pico 2 series of microcontroller boards starts at $5 and is built on the new RP2350 high-performance, secure microcontroller. With a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, enhanced security, and upgraded interfacing capabilities, the Pico 2 series delivers a significant boost in both performance and features while maintaining hardware and software compatibility with earlier Pico family boards.

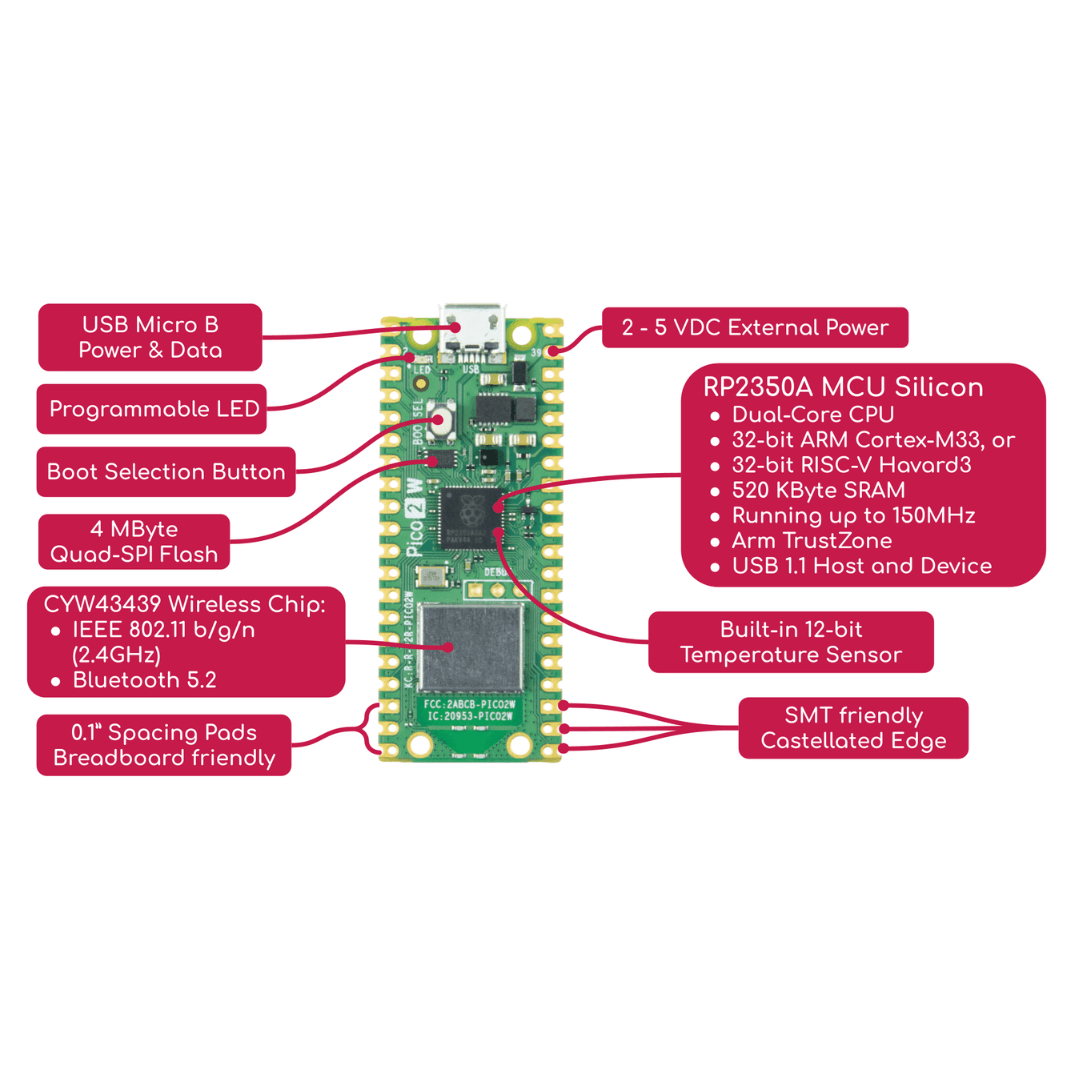

Specifications
-
Form factor: 21 mm × 51 mm
-
CPU: Dual Arm Cortex-M33 or dual RISC-V Hazard3 @ 150MHz
-
Memory: 520 KB on-chip SRAM; 4 MB QSPI flash
-
Connectivity: 2.4GHz 802.11n WiFi + Bluetooth 5.2 (Pico 2 W only)
-
Interfacing: 26 GPIO pins (4 ADC-capable)
-
Peripherals:
- 2 × UART
- 2 × SPI controllers
- 2 × I2C controllers
- 24 × PWM channels
- 1 × USB 1.1 controller + PHY (Host & Device)
- 12 × PIO state machines
-
Input power: 1.8–5.5V DC
-
Operating temperature: -20°C to +85°C
-
MTBF (Ground Benign): 182 000 hours
-
MTBF (Ground Mobile): 11 000 hours
