Power Meter SDM630 Modbus - มิเตอร์วัดพลังงาน 3 เฟส พร้อมระบบสื่อสาร RS485

คำอธิบาย

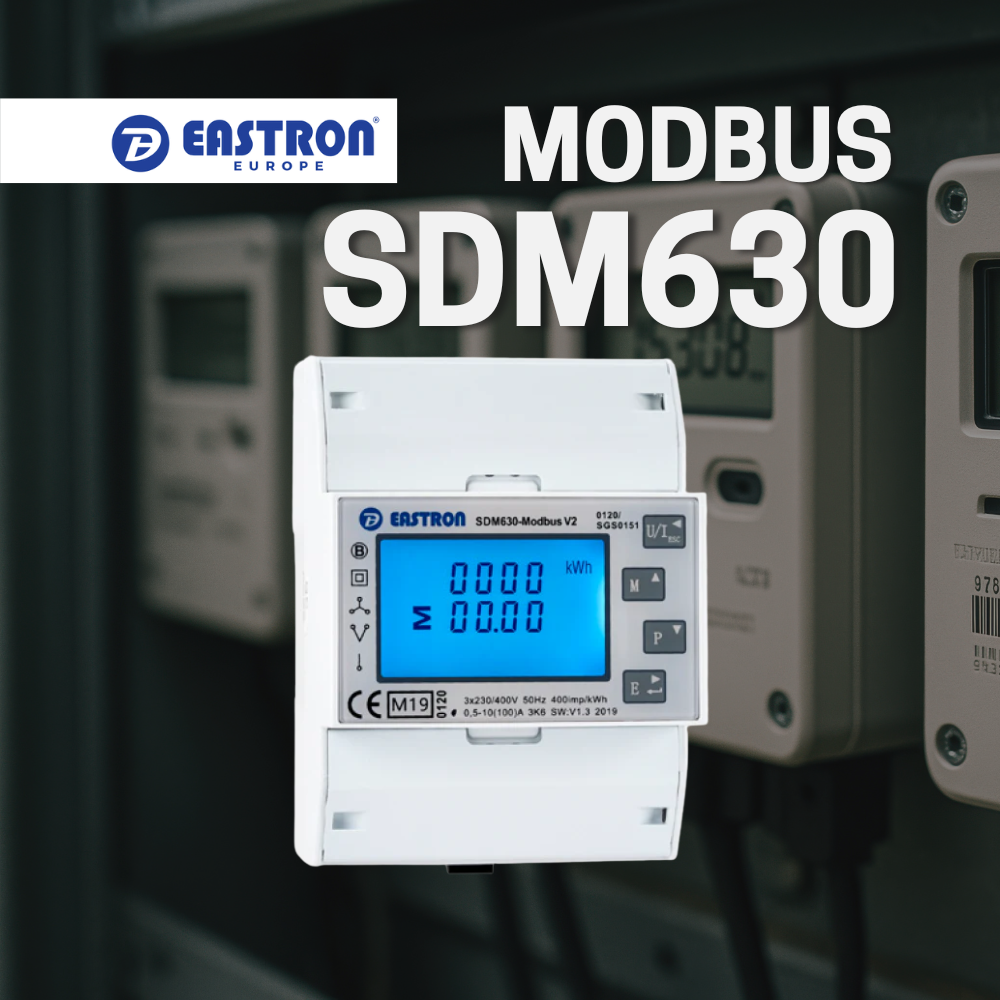

Eastron SDM630 — 3‑Phase / Single‑Phase DIN‑Rail Multi‑Function Energy Meter

Eastron SDM630 เป็น Power Meter แบบสามเฟสหรือเฟสเดียว รองรับการต่อโหลดโดยตรง (direct‑connect) สูงสุด 100 A ต่อเฟส (ไม่ต้องใช้ CT) เหมาะสำหรับอาคาร, โรงงาน, ระบบ EV / โซลาร์ / อาคารพาณิชย์ และระบบไฟฟ้าที่ต้องการวัดพลังงานและพารามิเตอร์ไฟฟ้าอย่างครบถ้วน พร้อม output แบบ Pulse และ/หรือ RS485 (Modbus) สำหรับเชื่อมต่อระบบตรวจวัด หรือ BMS / SCADA

  • รองรับระบบไฟ: 1P2W, 3P3W, 3P4W
  • Direct connection สูงสุด 100 A ต่อเฟส (ไม่ต้องใช้ CT)
  • วัด & แสดงพารามิเตอร์: Voltage, Current, Active / Reactive / Apparent Power, Energy (import/export), Power Factor, Frequency, Demand, THD ฯลฯ
  • Output / Communication: 2 × Pulse outputs + RS485 Modbus RTU (หรือ Pulse‑only ขึ้นกับรุ่นย่อย)
  • ติดตั้งแบบ DIN‑rail, หน้าจอ LCD back‑lit, 4‑module width
  • ได้รับมาตรฐาน MID / IEC / EN (ขึ้นกับรุ่น) สำหรับการวัดพลังงานอย่างแม่นยำ

Technical Specifications

Parameter Specification
Supported Systems 1P2W, 3P3W, 3P4W
Max Current (direct connection) 100 A per phase
Nominal Voltage (Un) 3 × 230/400 V AC (three-phase)
Operational Voltage Range Phase-to-Neutral: 100–289 V AC; Phase-to-Phase: 173–500 V AC
Measured Parameters Voltage, Current, Active / Reactive / Apparent Power, Active & Reactive Energy (import/export), Power Factor, Frequency, Maximum Demand, THD, etc.
Output / Communication 2 × Pulse outputs + RS485 Modbus RTU (หรือ Pulse-only ขึ้นกับรุ่นย่อย)
Display / Mounting LCD back‑lit, DIN‑rail 4‑module width
Accuracy (Voltage / Current) ±0.5%
Frequency Accuracy ±0.2%
Power / Energy Accuracy Class 1 (Active Energy), Class 2 (Reactive Energy) ตามมาตรฐาน IEC / EN / MID
Standards / Certification MID: EN50470‑1 & EN50470‑3
EMC: EN61326‑1 & EN61326‑2-3
Safety / LVD: EN61010‑1 & EN61010‑2‑3
Metering Standard: IEC 62052‑11, IEC 62053‑21 / 62053‑23 (ขึ้นกับรุ่น)

Power Meter SDM630 Modbus - มิเตอร์วัดพลังงาน 3 เฟส พร้อมระบบสื่อสาร RS485

รูปแบบสินค้า

Eastron SDM630 — 3‑Phase / Single‑Phase DIN‑Rail Multi‑Function Energy Meter Eastron SDM630 เป็น Power Meter แบบสามเฟสหรือเฟสเดียว รองรับการต่อโหลดโดยตรง (direct‑connect) สูงสุด 100 A... อ่านเพิ่มเติม

รหัสสินค้า: SDM630



5,300.00 ฿  4,890.00 ฿ รวมภาษีมูลค่าเพิ่ม

    คำอธิบาย

    Eastron SDM630 — 3‑Phase / Single‑Phase DIN‑Rail Multi‑Function Energy Meter

    Eastron SDM630 เป็น Power Meter แบบสามเฟสหรือเฟสเดียว รองรับการต่อโหลดโดยตรง (direct‑connect) สูงสุด 100 A ต่อเฟส (ไม่ต้องใช้ CT) เหมาะสำหรับอาคาร, โรงงาน, ระบบ EV / โซลาร์ / อาคารพาณิชย์ และระบบไฟฟ้าที่ต้องการวัดพลังงานและพารามิเตอร์ไฟฟ้าอย่างครบถ้วน พร้อม output แบบ Pulse และ/หรือ RS485 (Modbus) สำหรับเชื่อมต่อระบบตรวจวัด หรือ BMS / SCADA

    • รองรับระบบไฟ: 1P2W, 3P3W, 3P4W
    • Direct connection สูงสุด 100 A ต่อเฟส (ไม่ต้องใช้ CT)
    • วัด & แสดงพารามิเตอร์: Voltage, Current, Active / Reactive / Apparent Power, Energy (import/export), Power Factor, Frequency, Demand, THD ฯลฯ
    • Output / Communication: 2 × Pulse outputs + RS485 Modbus RTU (หรือ Pulse‑only ขึ้นกับรุ่นย่อย)
    • ติดตั้งแบบ DIN‑rail, หน้าจอ LCD back‑lit, 4‑module width
    • ได้รับมาตรฐาน MID / IEC / EN (ขึ้นกับรุ่น) สำหรับการวัดพลังงานอย่างแม่นยำ

    Technical Specifications

    Parameter Specification
    Supported Systems 1P2W, 3P3W, 3P4W
    Max Current (direct connection) 100 A per phase
    Nominal Voltage (Un) 3 × 230/400 V AC (three-phase)
    Operational Voltage Range Phase-to-Neutral: 100–289 V AC; Phase-to-Phase: 173–500 V AC
    Measured Parameters Voltage, Current, Active / Reactive / Apparent Power, Active & Reactive Energy (import/export), Power Factor, Frequency, Maximum Demand, THD, etc.
    Output / Communication 2 × Pulse outputs + RS485 Modbus RTU (หรือ Pulse-only ขึ้นกับรุ่นย่อย)
    Display / Mounting LCD back‑lit, DIN‑rail 4‑module width
    Accuracy (Voltage / Current) ±0.5%
    Frequency Accuracy ±0.2%
    Power / Energy Accuracy Class 1 (Active Energy), Class 2 (Reactive Energy) ตามมาตรฐาน IEC / EN / MID
    Standards / Certification MID: EN50470‑1 & EN50470‑3
    EMC: EN61326‑1 & EN61326‑2-3
    Safety / LVD: EN61010‑1 & EN61010‑2‑3
    Metering Standard: IEC 62052‑11, IEC 62053‑21 / 62053‑23 (ขึ้นกับรุ่น)
